MODULE 30

THE C++ STL CONTAINER ADAPTOR

My Training Period: xx hours

Program examples in this module compiled usingVC++7.0 / .Net, win32 empty console mode application. g++ examples given at the end of this Module. The source code for this tutorial is available inC++ STL Container Adaptor source code.

The C++ STL container adaptor abilities that supposed to be acquired:

• Able to understand and use container adapters.

• Able to understand and use container adapter stack.

• Able to understand and use container adapter queue.

• Able to understand and use container adapter priority queue.

What do we have in this page?

1. Container Adapters

2. <stack> header members – operators & classes

3. stack class members – typedef & member functions

4. stack, pop(), push(), size() and top() program example

5. stack Constructor

6. stack, constructor program example

7. stack Class

8. queue class members – typedefs & member functions

9. queue, back(), push(), front() program example

10. queue, front() program example

11. queue, pop() program example

12. queue, push() program example

13. queue Constructor

14. queue, constructor program example

15. queue Class

16. stack, pop(), push(), size() and top() program example – g++

• Thestack class supports a last-in, first-out (LIFO) data structure.  A good analogy would be a stack of plates.  Elements (plates) may be inserted, inspected, or removed only from the top of the stack, which is the last element at the end of the base container.  The restriction to accessing only the top element is the reason for using the stack class.

• Thequeue class supports a first-in, first-out (FIFO) data structure.  A good analogy would be people lining up for a bank teller.  Elements (people) may be added to the back of the line and are removed from the front of the line.  Both the front and the back of a line may be inspected.  The restriction to accessing only the front and back elements in this way is the reason fur using the queue class.

• Thepriority_queue class orders its elements so that the largest element is always at the top position.  It supports insertion of an element and the inspection and removal of the top element. A good analogy would be people lining up where they are arranged by age, height, or some other criterion.

30.2  <stack> Members

Operators

Classes

stack Members

Typedefs

Member Functions

• The stack must be nonempty to apply the member function. The top of the stack is the position occupied by the most recently added element and is the last element at the end of the container.

• The top of the stack is the position occupied by the most recently added element and is the last element at the end of the container.

// stack, pop(), push(), size() and top()

#include <stack>

#include <iostream>

using namespace std;

int main()

{

    stack <int> st1, st2;

    // push data element on the stack

    st1.push(21);

    int j=st1.top();

    cout<<j<<' ';

    st1.push(9);

    j=st1.top();

    cout<<j<<' ';

    st1.push(12);

    j=st1.top();

    cout<<j<<' ';

    st1.push(31);

    j=st1.top();

    cout<<j<<' '<<endl;

    stack <int>::size_type i;

    i = st1.size();

    cout<<"The stack length is "<<i<<endl;

    i = st1.top();

    cout<<"The element at the top of the stack is "<<i<<endl;

    st1.pop();

    i = st1.size();

    cout<<"After a pop, the stack length is "<<i<<endl;

    i = st1.top();

    cout<<"After a pop, the element at the top of the stack is "<<i<<endl;

    return 0;

}

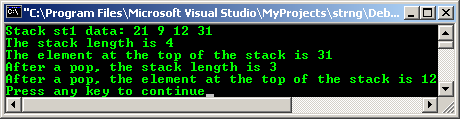

Output:

stack Constructor

• Constructs a stack that is empty or that is a copy of a base container class.

stack( );

explicit stack( const container_type& _Right );

Parameter

// stack, constructor

#include <stack>

#include <vector>

#include <list>

#include <iostream>

using namespace std;

int main()

{

    // declares stack with default deque base container

    stack <char> deq1;

    // explicitly declares a stack with deque base container

    stack <char, deque<char> > deq2;

    // declares a stack with vector base containers

    stack <int, vector<int> > vec;

    // declares a stack with list base container

    stack <int, list<int> > lst;

    cout<<endl;

    return 0;

}

// no output

stack Class

• A template container adaptor class that provides a restriction of functionality limiting access to the element most recently added to some underlying container type.

• The stack class is used when it is important to be clear that only stack operations are being performed on the container.

template <class Type, class Container = deque<Type> >

Parameters

Typedefs

Member Functions

• The return value is the last element of the queue.  If the queue is empty, the return value is undefined.

• If the return value of back() is assigned to aconst_reference, the queue object cannot be modified.  If the return value of back() is assigned to a reference, the queue object can be modified.

// queue, back(), push(), front()

#include <queue>

#include <iostream>

using namespace std;

int main()

{

    queue <int> que1;

    que1.push(11);

    que1.push(13);

    int& x = que1.back();

    const int& y = que1.front();

    cout<<"The integer at the back of queue que1 is "<<x<<endl;

    cout<<"The integer at the front of queue que1 is "<<y<<endl;

    return 0;

}

Output:

• The return value is the last element of the queue.  If the queue is empty, the return value is undefined.

• If the return value of front() is assigned to a const_reference, the queue object cannot be modified.  If the return value of front() is assigned to a reference, the queue object can be modified.

• The member function returns a reference to the first element of the controlled sequence, which must be nonempty.

// queue, front()

#include <queue>

#include <iostream>

using namespace std;

int main()

{

    queue <int> que;

    que.push(9);

    que.push(12);

    que.push(20);

    que.push(15);

    queue <int>::size_type x;

    x = que.size();

    cout<<"The queue length is "<<x<<endl;

    int& y = que.back();

    int& z = que.front();

    cout<<"The integer at the back of queue que is "<<y<<endl;

    cout<<"The integer at the front of queue que is "<<z<<endl;

    return 0;

}

Output:

• The queue must be nonempty to apply the member function.  The top of the queue is the position occupied by the most recently added element and is the last element at the end of the container.

// queue, pop()

#include <queue>

#include <iostream>

using namespace std;

int main()

{

    queue <int> que;

    que.push(21);

    que.push(9);

    que.push(13);

    queue <int>::size_type i;

    i = que.size();

    cout<<"The queue length is "<<i<<endl;

    i = que.front();

    cout<<"The element at the front of the queue is "<<i<<endl;

    que.pop();

    i = que.size();

    cout<<"After a pop the queue length is "<<i<<endl;

    i = que.front();

    cout<<"After a pop, the element at the front of the queue is "<<i<<endl;

    return 0;

}

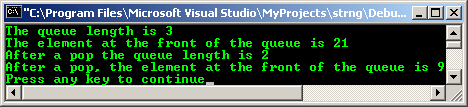

Output:

• The top of the queue is the position occupied by the most recently added element and is the last element at the end of the container.

// queue, push()

#include <queue>

#include <iostream>

using namespace std;

int main()

{

    queue <int> que;

    que.push(23);

    que.push(15);

    que.push(32);

    queue <int>::size_type i;

    i = que.size();

    cout<<"The queue length is "<<i<<endl;

    i = que.front();

    cout<<"The element at the front of the queue is "<<i<<endl;

    return 0;

}

Output:

queue Constructor

• Constructs a queue that is empty or that is a copy of a base container object.

queue( );

explicit queue( const container_type& _Right );

Parameter

• The default base container for queue is deque.  You can also specify list as a base container, but you cannot specify vector, because it lacks the required pop_front() member function.

// queue, constructor

#include <queue>

#include <vector>

#include <list>

#include <iostream>

using namespace std;

int main()

{

    // declares queue with default deque base container

    queue <char> que;

    // explicitly declares a queue with deque base container

    queue <char, deque<char> > que1;

    // these lines don't cause an error, even though they declares a queue with a vector base container

    queue <int, vector<int> > que2;

    que2.push(12);

    // but the following would cause an error because vector has no pop_front() member function

    // que2.pop();

    //Declares a queue with list base container

    queue <int, list<int> > que3;

    cout<<endl;

    return 0;

}

// no output

queue Class

• A template container adaptor class that provides a restriction of functionality for some underlying container type, limiting access to the front and back elements.

• Elements can be added at the back or removed from the front, and elements can be inspected at either end of the queue.

template < class Type, class Container = deque<Type> >

Parameters

• The elements of class Type stipulated in the first template parameter of a queue object are synonymous with value_type and must match the type of element in the underlying container class Container stipulated by the second template parameter.

• TheType must be assignable, so that it is possible to copy objects of that type and to assign values to variables of that type.

• Suitable underlying container classes for queue include deque and list, or any other sequence container that supports the operations of front(), back(),push_back(), and pop_front().

• The underlying container class is encapsulated within the container adaptor, which exposes only the limited set of the sequence container member functions as a public interface.

• The queue objects are equality comparable if and only if the elements of class Type are equality comparable, and are less-than comparable if and only if the elements of class Type are less-than comparable.

• These three types of container adaptors defined by the STL, each restricts the functionality of some underlying container class to provide a precisely controlled interface to a standard data structure.

• The following is a program example compiled usingg++.

// *******stackpopush.cpp*******

// stack, pop(), push(), size() and top()

#include <stack>

#include <iostream>

using namespace std;

int main()

{

    stack <int> st1, st2;

    // push data element on the stack

    st1.push(21);

    int j=st1.top();

    cout<<j<<' ';

    st1.push(9);

    j=st1.top();

    cout<<j<<' ';

    st1.push(12);

    j=st1.top();

    cout<<j<<' ';

    st1.push(31);

    j=st1.top();

    cout<<j<<' '<<endl;

    stack <int>::size_type i;

    i = st1.size();

    cout<<"The stack length is "<<i<<endl;

    i = st1.top();

    cout<<"The element at the top of the stack is "<<i<<endl;

    st1.pop();

    i = st1.size();

    cout<<"After a pop, the stack length is "<<i<<endl;

    i = st1.top();

    cout<<"After a pop, the element at the top of the stack is "<<i<<endl;

    return 0;

}

[bodo@bakawali ~]$ g++ stackpopush.cpp -o stackpopush

[bodo@bakawali ~]$ ./stackpopush

21 9 12 31

The stack length is 4

The element at the top of the stack is 31

After a pop, the stack length is 3

After a pop, the element at the top of the stack is 12

// *****queuepop.cpp*******

// queue, pop()

#include <queue>

#include <iostream>

using namespace std;

int main()

{

    queue <int> que;

    que.push(21);

    que.push(9);

    que.push(13);

    queue <int>::size_type i;

    i = que.size();

    cout<<"The queue length is "<<i<<endl;

    i = que.front();

    cout<<"The element at the front of the queue is "<<i<<endl;

    que.pop();

    i = que.size();

    cout<<"After a pop the queue length is "<<i<<endl;

    i = que.front();

    cout<<"After a pop, the element at the front of the queue is "<<i<<endl;

    return 0;

}

[bodo@bakawali ~]$ g++ queuepop.cpp -o queuepop

[bodo@bakawali ~]$ ./queuepop

The queue length is 3

The element at the front of the queue is 21

After a pop the queue length is 2

After a pop, the element at the front of the queue is 9

--------------------------------------End of Container Adaptor-----------------------------------
