ModuleN: The Hacking of the Windows Users and Groups - info, notes and C/Win32 program examples

MODULE N

WINDOWS OS

.::USER ACCOUNTS AND GROUPS: STORY & PROGRAM EXAMPLES::.

PART 3

My Training Period: hours

Note:

This is a continuation from previous Windows User Accounts & Groups Programming 2. More examples compiled using Visual C++ .Net (Visual studio .Net 2003) except whenever mentioned. It is low-level programming and the .Net used is Unmanaged (/clr is not set: Project menu → your_project_name Properties… sub menu → Configuration Properties folder → General subfolder → Used Managed Extension setting set to No). This also applied to other program examples in other Modules of tenouk.com Tutorial that mentioned “compiled using Visual C++ .Net”. Other settings are default. Machine’s OS is standalone Win Xp SP2 except whenever mentioned. Beware the codes that span more than one line. Program examples have been tested for Non Destructive Test :o). All information recomposed for Win 2000 (NT5.0) above.

WARNING

Wrongly modified and run the program examples presented here might collapse your Windows machine or disturb its integrity. So for your Windows machine safety, make sure you fulfill the following conditions:

Already read, understood and agreed to tenouk.com small disclaimer.
Must be familiar with Windows OSes mainly NT5 (Windows 2000 above).
Should be fluent in the following C topics: Function, Array, Pointer, String, Structure and Unicode/Wide character.
Then, the basic knowledge and skills of the Windows Access Control.
Do not mess up your system (Get a test machine! And run the program examples on the test machine).
Must understand what you are going to do with the Windows APIs.
Function, structure, enumeration, type and macros used in this Module have been dumped at Win32 functions, struct, enum, typedef etc.
Related and required information (if any) not available in no. 7 can be found MSDN online.

Abilities

▪ Able to understand users and groups as implemented in Windows OSes.

▪ Able to understand and use functions to manipulate users, groups and machine account.

▪ Able to gather and understand the required information in order to use those functions.

▪ Able to understand, appreciate and apply how the Unicode/wide character implemented in Microsoft C programs.

NetUserChangePassword() Example Code

The following code sample demonstrates how to change a user's password with a call to the NetUserChangePassword() function. All parameters to the function are required.

//******* mychangepass.cpp ***********

#define _WIN32_WINNT 0x0501

// Wide character/Unicode based program

#ifndef UNICODE

#define UNICODE

#endif

#include <windows.h>

#include <stdio.h>

#include <lm.h>

// This program accept 4 arguments, a servername, a username, an old password

// and new password. Make sure the old password is entered correctly

int wmain(int argc, wchar_t *argv[])

{

DWORD dwError = 0;

NET_API_STATUS nStatus;

// All parameters are required.

if(argc != 5)

{

fwprintf(stderr, L"Usage: %s ServerName UserName OldPassword NewPassword\n", argv[0]);

// Just exit, no further processing

exit(1);

}

// Call the NetUserChangePassword function.

nStatus = NetUserChangePassword(argv[1], argv[2], argv[3], argv[4]);

// If the call succeeds, inform the user.

if(nStatus == NERR_Success)

fwprintf(stderr, L"Password for %s user has been changed successfully\n", argv[2]);

// Otherwise, print the system error.

else

fprintf(stderr, "A system error has occurred: %d\n", nStatus);

return 0;

}

E:\myproject\win32prog\Debug>mychangepass

Usage: mychangepass ServerName UserName OldPassword NewPassword

E:\myproject\win32prog\Debug> mychangepass mypersonal myuser#1 12345678 87654321

Password for myuser#1 user has been changed successfully

E:\myproject\win32prog\Debug>

NetLocalGroupAdd() Example Code

The following program example creates a local group.

//********* mylgroup.cpp **********

// For WinXp

#define _WIN32_WINNT 0x0501

// Wide character/Unicode based program

#ifndef UNICODE

#define UNICODE

#endif

#include <windows.h>

#include <stdio.h>

#include <lm.h>

// This program accept 3 arguments: servername, GroupName and Comment.

int wmain(int argc, wchar_t *argv[])

{

LOCALGROUP_INFO_1 lgi1;

DWORD dwLevel = 1;

DWORD dwError = 0;

NET_API_STATUS nStatus;

if(argc != 4)

{

fwprintf(stderr, L"Usage: %s ServerName GroupName Comment\n", argv[0]);

// Just exit, no further processing

exit(1);

}

// Set up the LOCALGROUP_INFO_1 structure.

// Assign the group name and comment

lgi1.lgrpi1_name = argv[2]; // Local group name

lgi1.lgrpi1_comment = argv[3]; // Comment

// Call the NetLocalGroupAdd() function, specifying level 1.

nStatus = NetLocalGroupAdd(argv[1],

dwLevel,

(LPBYTE)&lgi1,

&dwError);

// If the call succeeds, inform the user.

if(nStatus == NERR_Success)

fwprintf(stderr, L"%s local group has been created successfully on %s machine.\n", argv[2], argv[1]);

// Otherwise, print the system error.

else

fprintf(stderr, "A system error has occurred: %d\n", nStatus);

return 0;

}

E:\myproject\win32prog\Debug>mylgroup

Usage: mylgroup ServerName GroupName Comment

E:\myproject\win32prog\Debug>mylgroup mypersonal mytestgroup "Just a test local group creation"

mytestgroup local group has been created successfully on mypersonal machine.

E:\myproject\win32prog\Debug>

Verify our task.

Create a group

Figure 1: mytestgroup group has been created.

NetLocalGroupAddMembers() Example Code

The following example demonstrates how to add user or group as a member of group.

//********* myaddmember.cpp **********

// For WinXp

#define _WIN32_WINNT 0x0501

// Wide character/Unicode based program

#ifndef UNICODE

#define UNICODE

#endif

#include <windows.h>

#include <stdio.h>

#include <lm.h>

// This program accept 3 arguments: servername, GroupName and

// MemberAccountName (DomainName\AccountName).

int wmain(int argc, wchar_t *argv[])

{

LOCALGROUP_MEMBERS_INFO_3 lgmi3;

DWORD dwLevel = 3;

DWORD totalEntries = 1;

NET_API_STATUS nStatus;

if(argc != 4)

{

fwprintf(stderr, L"Usage: %s ServerName GroupName MemberAccountName-(DomainName\\AccountName)\n", argv[0]);

// Just exit, no further processing

exit(1);

}

// Set up the LOCALGROUP_MEMBERS_INFO_3 structure.

// Assign the member account name in form of

// DomainName\AccountName

lgmi3.lgrmi3_domainandname = argv[3];

// Call the NetLocalGroupAddMembers() function, specifying level 3.

// Level 0 can use SID

nStatus = NetLocalGroupAddMembers(argv[1],

argv[2],

dwLevel,

(LPBYTE)&lgmi3,

totalEntries);

// If the call succeeds, inform the user.

if(nStatus == NERR_Success)

fwprintf(stderr, L"%s has been added successfully to %s on %s machine.\n", argv[3], argv[2], argv[1]);

// Otherwise, print the system error.

else

fwprintf(stderr, L"A system error has occurred: %d\n", nStatus);

return 0;

}

F:\myproject\win32prog\Debug>myaddmember

Usage: myaddmember ServerName GroupName MemberAccountName-(DomainName\AccountName)

F:\myproject\win32prog\Debug>myaddmember mypersonal mytestgroup mypersonal\myuser#1

mypersonal\myuser#1 has been added successfully to mytestgroup on mypersonal machine.

F:\myproject\win32prog\Debug>myaddmember mypersonal mytestgroup mypersonal\myuser#2

mypersonal\myuser#2 has been added successfully to mytestgroup on mypersonal machine.

F:\myproject\win32prog\Debug>myaddmember mypersonal mytestgroup mypersonal\myuser#3

mypersonal\myuser#3 has been added successfully to mytestgroup on mypersonal machine.

F:\myproject\win32prog\Debug>myaddmember mypersonal Administrators mypersonal\myuser#1

mypersonal\myuser#1 has been added successfully to Administrators on mypersonal machine.

F:\myproject\win32prog\Debug>myaddmember mypersonal "Power Users" mypersonal\myuser#1

mypersonal\myuser#1 has been added successfully to Power Users on mypersonal machine.

F:\myproject\win32prog\Debug>myaddmember mypersonal Administrators mypersonal\mytestgroup

mypersonal\mytestgroup has been added successfully to Administrators on mypersonal machine.

F:\myproject\win32prog\Debug>

When a user account has been added to the Users local group, then it is usable. You can verify it through the Win Xp login screen. From the output, the restricted user myuser#1 etc. can be added as a member of Power Users and Administrators groups because the user that runs the program is a member of Administrators group. Note that the last output had shown we successfully added mytestgroup as a member of Administrators group.

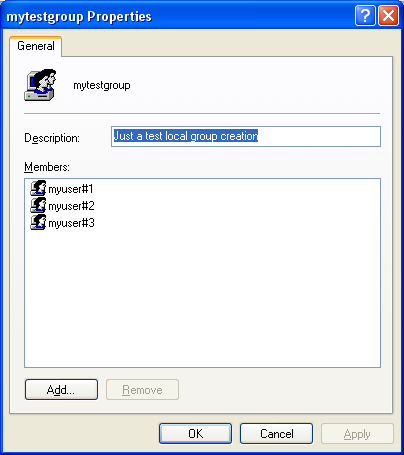

Add members to a group

Figure 2: Three members were added to mytestgroup group.

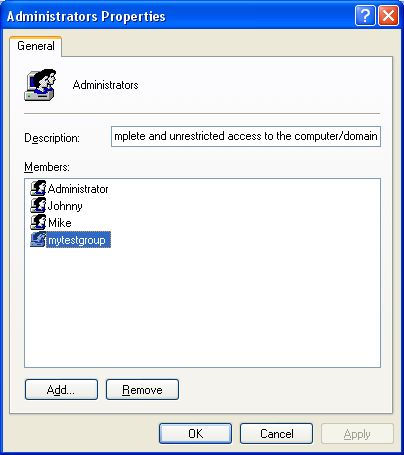

Add a group to a group

Figure 3: mytestgroup group was added to Administrators group.

############################################################

The following is the previous example that has been run on Windows 2000 Server Domain Controller (DC) of kpts.org domain. The DC logged on as Domain Administrator and the compiler used was Visual C++ 6.0.

//********* mydomusrgrp.cpp **********

// For Win 2000

#define _WIN32_WINNT 0x0500

// Wide character/Unicode based program

#ifndef UNICODE

#define UNICODE

#endif

#include <windows.h>

#include <stdio.h>

#include <lm.h>

// This program accept 3 arguments: servername, GroupName and

// MemberAccountName (DomainName\AccountName).

int wmain(int argc, wchar_t *argv[])

{

LOCALGROUP_MEMBERS_INFO_3 lgmi3;

DWORD dwLevel = 3;

DWORD totalEntries = 1;

NET_API_STATUS nStatus;

if(argc != 4)

{

fwprintf(stderr, L"Usage: %s ServerName GroupName MemberAccountName-(DomainName\\AccountName)\n", argv[0]);

// Just exit, no further processing

exit(1);

}

// Set up the LOCALGROUP_MEMBERS_INFO_3 structure.

// Assign the member account name in form of

// DomainName\AccountName

lgmi3.lgrmi3_domainandname = argv[3];

// Call the NetLocalGroupAddMembers() function, specifying level 3.

// Level 0 can use SID

nStatus = NetLocalGroupAddMembers(argv[1],

argv[2],

dwLevel,

(LPBYTE)&lgmi3,

totalEntries);

// If the call succeeds, inform the user.

if(nStatus == NERR_Success)

fwprintf(stderr, L"%s has been added successfully to %s group on %s machine.\n", argv[3], argv[2], argv[1]);

// Otherwise, print the system error.

else

fwprintf(stderr, L"A system error has occurred: %d\n", nStatus);

return 0;

}

C:\myproject\win32prog\Debug>mydomusrgrp

Usage: mydomusrgrp ServerName GroupName MemberAccountName-(DomainName\AccountName)

C:\myproject\win32prog\Debug>mydomusrgrp tutorkpts Administrators kpts.org\anonymdomuser

kpts.org\anonymdomuser has been added successfully to Administrators group on tutorkpts machine.

Then verify our task.

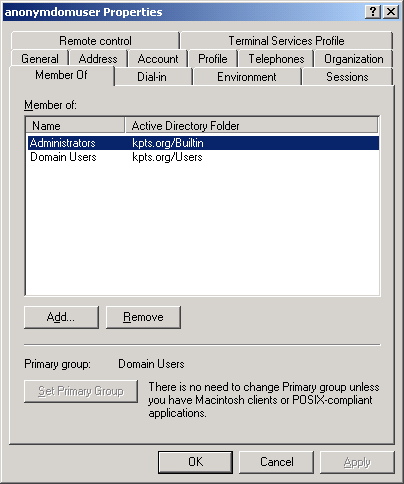

Add member to Administrators group

Figure 4: anonymdomuser user has been added to Domain Administrators built-in group.

#######################################################################################

---www.tenouk.com---
