OLE Embedded Components and Containers part 8
Program examples compiled using Visual C++ 6.0 compiler on Windows XP Pro machine with Service Pack 2. The Excel version is Excel 2003/Office 11. Topics and sub topics for this tutorial are listed below. Don’t forget to read Tenouk’s small disclaimer. The supplementary notes for this tutorial are IOleObject and OLE.
Index:
The Coding Part
The Coding Part
Add the following code to ex32c.h.
friend class CEx32cDoc;
Listing 1.

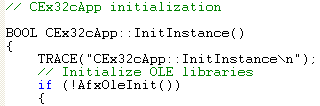

Add the following code to the InitInstance() of ex32c.cpp.
TRACE("CEx32cApp::InitInstance\n");
Listing 2.
Edit the following code portion.
// When a server application is launched stand-alone, it is a good idea
// to update the system registry in case it has been damaged.
m_server.UpdateRegistry(OAT_SERVER);
AfxMessageBox("Server can't be run stand-alone, use container -- Registry updated");
return FALSE;
// // Dispatch commands specified on the command line
// if (!ProcessShellCommand(cmdInfo))
// return FALSE;
// // The one and only window has been initialized, so show and update it.
// m_pMainWnd->ShowWindow(SW_SHOW);
// m_pMainWnd->UpdateWindow();
// return TRUE;
Listing 3.

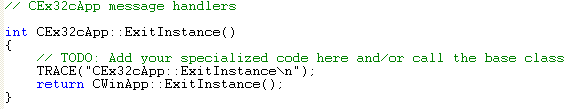

And the following code to the ExitInstance().
int CEx32cApp::ExitInstance()
{
// TODO: Add your specialized code here and/or call the base class
TRACE("CEx32cApp::ExitInstance\n");
return CWinApp::ExitInstance();
}
Listing 4.
Edit the OnDraw() code of ex32cView.cpp.
void CEx32cView::OnDraw(CDC* pDC)
{
CEx32cDoc* pDoc = GetDocument();
ASSERT_VALID(pDoc);
pDC->Rectangle(CRect(500, -1000, 1500, -2000));
pDC->TextOut(5, 5, pDoc->m_strText);
}
Listing 5.
Edit the OnPrepareDC() as shown below.
void CEx32cView::OnPrepareDC(CDC* pDC, CPrintInfo* pInfo)
{
// TODO: Add your specialized code here and/or call the base class
pDC->SetMapMode(MM_HIMETRIC);
}
Listing 6.

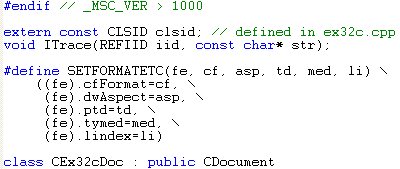

Add the following codes to ex32cDoc.h just after the preprocessor directives
extern const CLSID clsid; // defined in ex32c.cpp
void ITrace(REFIID iid, const char* str);
#define SETFORMATETC(fe, cf, asp, td, med, li) \
((fe).cfFormat=cf, \
(fe).dwAspect=asp, \
(fe).ptd=td, \
(fe).tymed=med, \
(fe).lindex=li)
Listing 7.

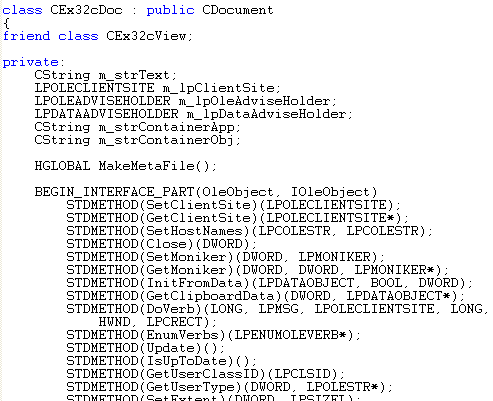

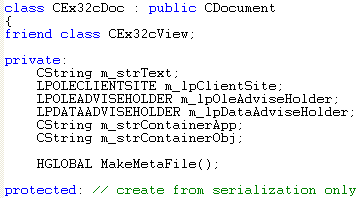

Add the following friend class, then adds those member variables and member function.
friend class CEx32cView;
private:
CString m_strText;
LPOLECLIENTSITE m_lpClientSite;
LPOLEADVISEHOLDER m_lpOleAdviseHolder;
LPDATAADVISEHOLDER m_lpDataAdviseHolder;
CString m_strContainerApp;
CString m_strContainerObj;
HGLOBAL MakeMetaFile();
Listing 8.
Manually add the following interface for IOleObject, IDataObject and IPersistStorage just after the previous codes.
BEGIN_INTERFACE_PART(OleObject, IOleObject)
STDMETHOD(SetClientSite)(LPOLECLIENTSITE);
STDMETHOD(GetClientSite)(LPOLECLIENTSITE*);
STDMETHOD(SetHostNames)(LPCOLESTR, LPCOLESTR);
STDMETHOD(Close)(DWORD);
STDMETHOD(SetMoniker)(DWORD, LPMONIKER);
STDMETHOD(GetMoniker)(DWORD, DWORD, LPMONIKER*);
STDMETHOD(InitFromData)(LPDATAOBJECT, BOOL, DWORD);
STDMETHOD(GetClipboardData)(DWORD, LPDATAOBJECT*);
STDMETHOD(DoVerb)(LONG, LPMSG, LPOLECLIENTSITE, LONG,
HWND, LPCRECT);
STDMETHOD(EnumVerbs)(LPENUMOLEVERB*);
STDMETHOD(Update)();
STDMETHOD(IsUpToDate)();
STDMETHOD(GetUserClassID)(LPCLSID);
STDMETHOD(GetUserType)(DWORD, LPOLESTR*);
STDMETHOD(SetExtent)(DWORD, LPSIZEL);
STDMETHOD(GetExtent)(DWORD, LPSIZEL);
STDMETHOD(Advise)(LPADVISESINK, LPDWORD);
STDMETHOD(Unadvise)(DWORD);
STDMETHOD(EnumAdvise)(LPENUMSTATDATA*);
STDMETHOD(GetMiscStatus)(DWORD, LPDWORD);
STDMETHOD(SetColorScheme)(LPLOGPALETTE);
END_INTERFACE_PART(OleObject)
BEGIN_INTERFACE_PART(DataObject, IDataObject)
STDMETHOD(GetData)(LPFORMATETC, LPSTGMEDIUM);
STDMETHOD(GetDataHere)(LPFORMATETC, LPSTGMEDIUM);
STDMETHOD(QueryGetData)(LPFORMATETC);
STDMETHOD(GetCanonicalFormatEtc)(LPFORMATETC, LPFORMATETC);
STDMETHOD(SetData)(LPFORMATETC, LPSTGMEDIUM, BOOL);
STDMETHOD(EnumFormatEtc)(DWORD, LPENUMFORMATETC*);
STDMETHOD(DAdvise)(LPFORMATETC, DWORD, LPADVISESINK, LPDWORD);
STDMETHOD(DUnadvise)(DWORD);
STDMETHOD(EnumDAdvise)(LPENUMSTATDATA*);
END_INTERFACE_PART(DataObject)
BEGIN_INTERFACE_PART(PersistStorage, IPersistStorage)
STDMETHOD(GetClassID)(LPCLSID);
STDMETHOD(IsDirty)();
STDMETHOD(InitNew)(LPSTORAGE);
STDMETHOD(Load)(LPSTORAGE);
STDMETHOD(Save)(LPSTORAGE, BOOL);
STDMETHOD(SaveCompleted)(LPSTORAGE);
STDMETHOD(HandsOffStorage)();
END_INTERFACE_PART(PersistStorage)
DECLARE_INTERFACE_MAP()
Listing 9.

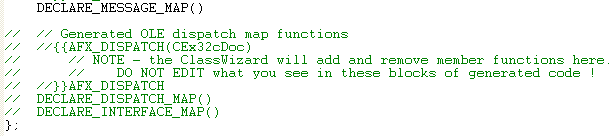

Delete (or comment out) the AppWizard generated DECLARE_DISPATCH_MAP and DECLARE_INTERFACE_MAP.
// // Generated OLE dispatch map functions
// //{{AFX_DISPATCH(CEx32cDoc)
// // NOTE - the ClassWizard will add and remove member functions here.
// // DO NOT EDIT what you see in these blocks of generated code !
// //}}AFX_DISPATCH
// DECLARE_DISPATCH_MAP()
// DECLARE_INTERFACE_MAP()
Listing 10.
Add the following #include directive to ex32cDoc.cpp.
#include "TextDialog.h"
Listing 11.

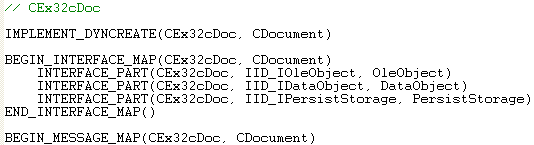

Manually add the following interface.
BEGIN_INTERFACE_MAP(CEx32cDoc, CDocument)
INTERFACE_PART(CEx32cDoc, IID_IOleObject, OleObject)
INTERFACE_PART(CEx32cDoc, IID_IDataObject, DataObject)
INTERFACE_PART(CEx32cDoc, IID_IPersistStorage, PersistStorage)
END_INTERFACE_MAP()
Listing 12.

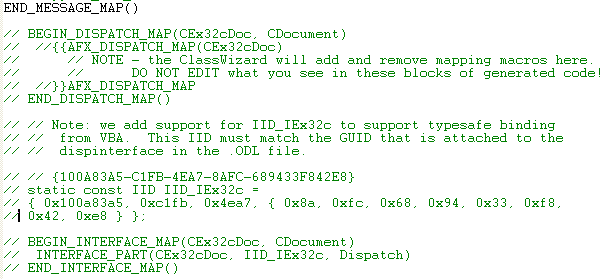

Delete (or comment out) the auto AppWizard generated DISPATCH_MAP and INTERFACE_MAP.
// BEGIN_DISPATCH_MAP(CEx32cDoc, CDocument)
// //{{AFX_DISPATCH_MAP(CEx32cDoc)
// // NOTE - the ClassWizard will add and remove mapping macros here.
// // DO NOT EDIT what you see in these blocks of generated code!
// //}}AFX_DISPATCH_MAP
// END_DISPATCH_MAP()
// // Note: we add support for IID_IEx32c to support typesafe binding
// // from VBA. This IID must match the GUID that is attached to the
// // dispinterface in the .ODL file.
// // {100A83A5-C1FB-4EA7-8AFC-689433F842E8}
// static const IID IID_IEx32c =
// { 0x100a83a5, 0xc1fb, 0x4ea7, { 0x8a, 0xfc, 0x68, 0x94, 0x33, 0xf8, 0x42, 0xe8 } };
// BEGIN_INTERFACE_MAP(CEx32cDoc, CDocument)
// INTERFACE_PART(CEx32cDoc, IID_IEx32c, Dispatch)
// END_INTERFACE_MAP()
Listing 13.
Add the implementation for the interfaces. Firstly add the implementation for OleObject just after the previous commented codes.
///////////////////////////////////////////////////////////////////////
// CEx32cDoc OLE interface functions
STDMETHODIMP_(ULONG) CEx32cDoc::XOleObject::AddRef()
{
TRACE("CEx32cDoc::XOleObject::AddRef\n");
METHOD_PROLOGUE(CEx32cDoc, OleObject)
return pThis->InternalAddRef();
}
STDMETHODIMP_(ULONG) CEx32cDoc::XOleObject::Release()
{
TRACE("CEx32cDoc::XOleObject::Release\n");
METHOD_PROLOGUE(CEx32cDoc, OleObject)
return pThis->InternalRelease();
}
STDMETHODIMP CEx32cDoc::XOleObject::QueryInterface(
REFIID iid, LPVOID* ppvObj)
{
ITrace(iid, "CEx32cDoc::XOleObject::QueryInterface");
METHOD_PROLOGUE(CEx32cDoc, OleObject)
return pThis->InternalQueryInterface(&iid, ppvObj);
}
STDMETHODIMP CEx32cDoc::XOleObject::SetClientSite(
LPOLECLIENTSITE pClientSite)
{
TRACE("CEx32cDoc::XOleObject::SetClientSite\n");
METHOD_PROLOGUE(CEx32cDoc, OleObject)
// linked objects do not support SetClientSite
if (pClientSite != NULL)
pClientSite->AddRef();
if(pThis->m_lpClientSite != NULL) pThis->m_lpClientSite->Release();
pThis->m_lpClientSite = pClientSite;
return NOERROR;
}
STDMETHODIMP CEx32cDoc::XOleObject::GetClientSite(
LPOLECLIENTSITE* ppClientSite)
{
TRACE("CEx32cDoc::XOleObject::GetClientSite\n");
METHOD_PROLOGUE(CEx32cDoc, OleObject)
*ppClientSite = pThis->m_lpClientSite;
if (pThis->m_lpClientSite != NULL)
pThis->m_lpClientSite->AddRef(); // IMPORTANT
return NOERROR;
}
STDMETHODIMP CEx32cDoc::XOleObject::SetHostNames(
LPCOLESTR szContainerApp, LPCOLESTR szContainerObj)
{
TRACE("CEx32cDoc::XOleObject::SetHostNames\n");
METHOD_PROLOGUE(CEx32cDoc, OleObject)
CString strTitle = "EX28C object embedded in ";
if(szContainerApp != NULL) {
strTitle += CString(szContainerApp);
}
CWnd* pWnd = AfxGetMainWnd();
pWnd->SetWindowText(strTitle);
return NOERROR;
}
STDMETHODIMP CEx32cDoc::XOleObject::Close(DWORD /*dwSaveOption*/)
{
TRACE("CEx32cDoc::XOleObject::Close\n");
// linked objects do not support close
return E_NOTIMPL;
}
STDMETHODIMP CEx32cDoc::XOleObject::SetMoniker(
DWORD /*dwWhichMoniker*/, LPMONIKER /*pmk*/)
{
TRACE("CEx32cDoc::XOleObject::SetMoniker\n");
// linked objects do not support SetMoniker
return E_NOTIMPL;
}
STDMETHODIMP CEx32cDoc::XOleObject::GetMoniker(
DWORD dwAssign, DWORD dwWhichMoniker, LPMONIKER* ppMoniker)
{
TRACE("CEx32cDoc::XOleObject::GetMoniker\n");
return E_NOTIMPL;
}
STDMETHODIMP CEx32cDoc::XOleObject::InitFromData(
LPDATAOBJECT /*pDataObject*/, BOOL /*fCreation*/, DWORD /*dwReserved*/)
{
TRACE("CEx32cDoc::XOleObject::InitFromData\n");
// linked objects do not support InitFromData
return E_NOTIMPL;
}
STDMETHODIMP CEx32cDoc::XOleObject::GetClipboardData(
DWORD /*dwReserved*/, LPDATAOBJECT* ppDataObject)
{
TRACE("CEx32cDoc::XOleObject::GetClipboardData\n");
return E_NOTIMPL;
}
STDMETHODIMP CEx32cDoc::XOleObject::DoVerb(
LONG iVerb, LPMSG lpmsg, LPOLECLIENTSITE pActiveSite, LONG lindex,
HWND hwndParent, LPCRECT lpPosRect)
{
TRACE("CEx32cDoc::XOleObject::DoVerb - %d\n", iVerb);
METHOD_PROLOGUE(CEx32cDoc, OleObject)
ASSERT_VALID(pThis);
pThis->InternalAddRef(); // protect this object
CWnd* pWnd = AfxGetMainWnd();
switch (iVerb)
{
// open - maps to OnOpen
case OLEIVERB_OPEN:
case -OLEIVERB_OPEN-1: // allows positive OLEIVERB_OPEN-1 in registry
case OLEIVERB_PRIMARY: // OLEIVERB_PRIMARY is 0 and "Edit" in registry
case OLEIVERB_SHOW:
pWnd->ShowWindow(SW_SHOW);
pWnd->SetActiveWindow();
pWnd->SetForegroundWindow();
break;
// hide maps to OnHide
case OLEIVERB_HIDE:
case -OLEIVERB_HIDE-1: // allows positive OLEIVERB_HIDE-1 in registry
return E_NOTIMPL;
default:
// negative verbs not understood should return E_NOTIMPL
if (iVerb < 0)
return E_NOTIMPL;
AfxThrowOleException(OLEOBJ_S_INVALIDVERB);
}
pThis->InternalRelease(); // may 'delete this'
pThis->m_lpClientSite->OnShowWindow(TRUE); // hatch
return NOERROR;
}
STDMETHODIMP CEx32cDoc::XOleObject::EnumVerbs(
IEnumOLEVERB** ppenumOleVerb)
{
TRACE("CEx32cDoc::XOleObject::EnumVerbs\n");
return E_NOTIMPL;
}
STDMETHODIMP CEx32cDoc::XOleObject::Update()
{
TRACE("CEx32cDoc::XOleObject::Update\n");
METHOD_PROLOGUE(CEx32cDoc, OleObject)
return E_NOTIMPL;
}
STDMETHODIMP CEx32cDoc::XOleObject::IsUpToDate()
{
TRACE("CEx32cDoc::XOleObject::IsUpToDate\n");
return E_NOTIMPL;
}
STDMETHODIMP CEx32cDoc::XOleObject::GetUserClassID(CLSID* pClsid)
{
TRACE("CEx32cDoc::XOleObject::GetUserClassID\n");
METHOD_PROLOGUE(CEx32cDoc, OleObject)
ASSERT_VALID(pThis);
return pThis->m_xPersistStorage.GetClassID(pClsid);
}
STDMETHODIMP CEx32cDoc::XOleObject::GetUserType(
DWORD dwFormOfType, LPOLESTR* ppszUserType)
{
TRACE("CEx32cDoc::XOleObject::GetUserType\n");
METHOD_PROLOGUE(CEx32cDoc, OleObject)
ASSERT_VALID(pThis);
*ppszUserType = NULL;
CLSID clsid;
pThis->m_xOleObject.GetUserClassID(&clsid);
return OleRegGetUserType(clsid, dwFormOfType, ppszUserType);
}
STDMETHODIMP CEx32cDoc::XOleObject::SetExtent(
DWORD /*dwDrawAspect*/, LPSIZEL /*lpsizel*/)
{
TRACE("CEx32cDoc::XOleObject::SetExtent\n");
return E_FAIL;
}
STDMETHODIMP CEx32cDoc::XOleObject::GetExtent(
DWORD dwDrawAspect, LPSIZEL lpsizel)
{
TRACE("CEx32cDoc::XOleObject::GetExtent\n");
METHOD_PROLOGUE(CEx32cDoc, OleObject)
ASSERT_VALID(pThis);
// handler returns extent in metafilepict
return E_NOTIMPL;
}
STDMETHODIMP CEx32cDoc::XOleObject::Advise(
IAdviseSink* pAdvSink, DWORD* pdwConnection)
{
TRACE("CEx32cDoc::XOleObject::Advise\n");
METHOD_PROLOGUE(CEx32cDoc, OleObject)
ASSERT_VALID(pThis);
*pdwConnection = 0;
if (pThis->m_lpOleAdviseHolder == NULL &&
::CreateOleAdviseHolder(&pThis->m_lpOleAdviseHolder)
!= NOERROR) {
return E_OUTOFMEMORY;
}
ASSERT(pThis->m_lpOleAdviseHolder != NULL);
return pThis->m_lpOleAdviseHolder->Advise(pAdvSink, pdwConnection);
}
STDMETHODIMP CEx32cDoc::XOleObject::Unadvise(DWORD dwConnection)
{
TRACE("CEx32cDoc::XOleObject::Unadvise\n");
METHOD_PROLOGUE(CEx32cDoc, OleObject)
ASSERT_VALID(pThis);
return E_NOTIMPL;
}
STDMETHODIMP CEx32cDoc::XOleObject::EnumAdvise(
LPENUMSTATDATA* ppenumAdvise)
{
TRACE("CEx32cDoc::XOleObject::EnumAdvise\n");
METHOD_PROLOGUE(CEx32cDoc, OleObject)
ASSERT_VALID(pThis);
return E_NOTIMPL;
}
STDMETHODIMP CEx32cDoc::XOleObject::GetMiscStatus(
DWORD dwAspect, DWORD* pdwStatus)
{
TRACE("CEx32cDoc::XOleObject::GetMiscStatus\n");
METHOD_PROLOGUE(CEx32cDoc, OleObject)
ASSERT_VALID(pThis);
*pdwStatus = 0;
CLSID clsid;
pThis->m_xOleObject.GetUserClassID(&clsid);
return OleRegGetMiscStatus(clsid, dwAspect, pdwStatus);
}
STDMETHODIMP CEx32cDoc::XOleObject::SetColorScheme(LPLOGPALETTE lpLogpal)
{
TRACE("CEx32cDoc::XOleObject::SetColorScheme\n");
METHOD_PROLOGUE(CEx32cDoc, OleObject)
ASSERT_VALID(pThis);
return E_NOTIMPL;
}
Next, add the implementation codes for DataObject.
// CEx32cDoc::XDataObject
// delegate many calls to embedded COleDataSource object, which manages formats
STDMETHODIMP_(ULONG) CEx32cDoc::XDataObject::AddRef()
{
TRACE("CEx32cDoc::XDataObject::AddRef\n");
METHOD_PROLOGUE(CEx32cDoc, DataObject)
return pThis->InternalAddRef();
}
STDMETHODIMP_(ULONG) CEx32cDoc::XDataObject::Release()
{
TRACE("CEx32cDoc::XDataObject::Release\n");
METHOD_PROLOGUE(CEx32cDoc, DataObject)
return pThis->InternalRelease();
}
STDMETHODIMP CEx32cDoc::XDataObject::QueryInterface(
REFIID iid, LPVOID* ppvObj)
{

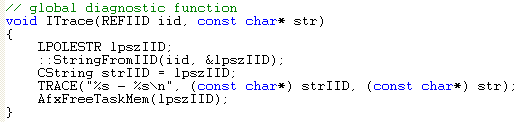

ITrace(iid, "CEx32cDoc::XDataObject::QueryInterface");
METHOD_PROLOGUE(CEx32cDoc, DataObject)
return pThis->InternalQueryInterface(&iid, ppvObj);
}
STDMETHODIMP CEx32cDoc::XDataObject::GetData(
LPFORMATETC lpFormatEtc, LPSTGMEDIUM lpStgMedium)
{
TRACE("CEx32cDoc::XDataObject::GetData -- %d\n",
lpFormatEtc->cfFormat);
METHOD_PROLOGUE(CEx32cDoc, DataObject)
ASSERT_VALID(pThis);
if(lpFormatEtc->cfFormat != CF_METAFILEPICT) {
return S_FALSE;
}

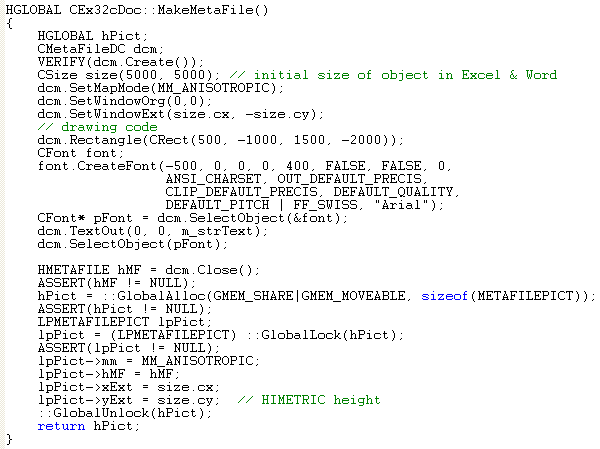

HGLOBAL hPict = pThis->MakeMetaFile();
lpStgMedium->tymed = TYMED_MFPICT;
lpStgMedium->hMetaFilePict = hPict;
lpStgMedium->pUnkForRelease = NULL;
