OLE Embedded Components and Containers part 4
Program examples compiled using Visual C++ 6.0 compiler on Windows XP Pro machine with Service Pack 2. The Excel version is Excel 2003/Office 11. Topics and sub topics for this tutorial are listed below. Don’t forget to read Tenouk’s small disclaimer. The supplementary notes for this tutorial are IOleObject and OLE.
Index:
The EX32B From Scratch...continue
Add the #include directive in ex32bView.cpp.
#include <afxole.h>
Listing 7.

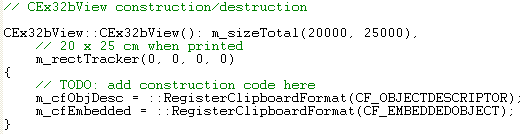

Modify the constructor as shown below.
CEx28bView::CEx28bView(): m_sizeTotal(20000, 25000),
// 20 x 25 cm when printed
m_rectTracker(0, 0, 0, 0)
{
m_cfObjDesc = ::RegisterClipboardFormat(CF_OBJECTDESCRIPTOR);
m_cfEmbedded = ::RegisterClipboardFormat(CF_EMBEDDEDOBJECT);
}
Listing 8.
Modify the OnDraw() as shown below.
void CEx32bView::OnDraw(CDC* pDC)
{
CEx32bDoc* pDoc = GetDocument();
if(pDoc->m_lpOleObj != NULL)
{
VERIFY(::OleDraw(pDoc->m_lpOleObj, DVASPECT_CONTENT,
pDC->GetSafeHdc(), m_rectTracker) == S_OK);
}
m_tracker.m_rect = m_rectTracker;
pDC->LPtoDP(m_tracker.m_rect); // device
if(pDoc->m_bHatch)
{
m_tracker.m_nStyle |= CRectTracker::hatchInside;
}
else
{
m_tracker.m_nStyle &= ~CRectTracker::hatchInside;
}
m_tracker.Draw(pDC);
}
Listing 9.
Edit OnPreparePrinting() as shown below.
BOOL CEx32bView::OnPreparePrinting(CPrintInfo* pInfo)
{
pInfo->SetMaxPage(1);
return DoPreparePrinting(pInfo);
}
Listing 10.
Edit OnInitialUpdate() as shown below.
void CEx32bView::OnInitialUpdate()
{
TRACE("CEx32bView::OnInitialUpdate\n");
m_rectTracker = CRect(1000, -1000, 5000, -5000);
m_tracker.m_nStyle = CRectTracker::solidLine |
CRectTracker::resizeOutside;
SetScrollSizes(MM_HIMETRIC, m_sizeTotal);
CScrollView::OnInitialUpdate();
}
Listing 11.
Edit other message handlers as shown in the following codes.

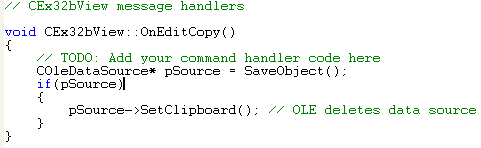

void CEx32bView::OnEditCopy()
{
// TODO: Add your command handler code here
COleDataSource* pSource = SaveObject();
if(pSource)
{
pSource->SetClipboard(); // OLE deletes data source
}
}
Listing 12.
void CEx32bView::OnUpdateEditCopy(CCmdUI* pCmdUI)
{
// TODO: Add your command update UI handler code here
// serves Copy, Cut, and Copy To
pCmdUI->Enable(GetDocument()->m_lpOleObj != NULL);
}
Listing 13.
void CEx32bView::OnEditCopyto()
{
// TODO: Add your command handler code here
// Copy text to an .STG file (nothing special about STG ext)
CFileDialog dlg(FALSE, "stg", "*.stg");
if (dlg.DoModal() != IDOK) {
return;
}
CEx32bDoc* pDoc = GetDocument();
// Create a structured storage home for the object (m_pStgSub).
// Create a root storage file, then a substorage named "sub."
LPSTORAGE pStgRoot;
VERIFY(::StgCreateDocfile(dlg.GetPathName().AllocSysString(),
STGM_READWRITE|STGM_SHARE_EXCLUSIVE|STGM_CREATE,
0, &pStgRoot) == S_OK);
ASSERT(pStgRoot != NULL);
LPSTORAGE pStgSub;
VERIFY(pStgRoot->CreateStorage(CEx32bDoc::s_szSub,
STGM_CREATE|STGM_READWRITE|STGM_SHARE_EXCLUSIVE,
0, 0, &pStgSub) == S_OK);
ASSERT(pStgSub != NULL);
// Get the IPersistStorage* for the object
LPPERSISTSTORAGE pPS = NULL;
VERIFY(pDoc->m_lpOleObj->QueryInterface(IID_IPersistStorage,
(void**) &pPS) == S_OK);
// Finally, save the object in its new home in the user's file
VERIFY(::OleSave(pPS, pStgSub, FALSE) == S_OK);
// FALSE means different stg
pPS->SaveCompleted(NULL); // What does this do?
pPS->Release();
pStgSub->Release();
pStgRoot->Release();
}
Listing 14.
void CEx32bView::OnEditCut()
{
// TODO: Add your command handler code here
OnEditCopy();
GetDocument()->OnEditClearAll();
}
Listing 15.
void CEx32bView::OnEditInsertobject()
{
// TODO: Add your command handler code here
CEx32bDoc* pDoc = GetDocument();
COleInsertDialog dlg;
if(dlg.DoModal() == IDCANCEL) return;
// no addrefs done for GetInterface
LPOLECLIENTSITE pClientSite = (LPOLECLIENTSITE)pDoc->GetInterface(&IID_IOleClientSite);
ASSERT(pClientSite != NULL);
pDoc->DeleteContents();
VERIFY(::OleCreate(dlg.GetClassID(), IID_IOleObject,
OLERENDER_DRAW, NULL, pClientSite, pDoc->m_pTempStgSub,
(void**) &pDoc->m_lpOleObj) == S_OK);
SetViewAdvise();
pDoc->m_lpOleObj->DoVerb(OLEIVERB_SHOW, NULL, pClientSite, 0,
NULL, NULL); // OleRun doesn't show it
SetNames();
GetDocument()->SetModifiedFlag();
GetSize();
pDoc->UpdateAllViews(NULL);
}
Listing 16.
void CEx32bView::OnUpdateEditInsertobject(CCmdUI* pCmdUI)
{
// TODO: Add your command update UI handler code here
pCmdUI->Enable(GetDocument()->m_lpOleObj == NULL);
}
void CEx32bView::OnEditPaste()
{
// TODO: Add your command handler code here
CEx32bDoc* pDoc = GetDocument();
COleDataObject dataObject;
VERIFY(dataObject.AttachClipboard());
pDoc->DeleteContents();
DoPasteObjectDescriptor(&dataObject);
DoPasteObject(&dataObject);
SetViewAdvise();
GetSize();
pDoc->SetModifiedFlag();
pDoc->UpdateAllViews(NULL);
}
void CEx32bView::OnUpdateEditPaste(CCmdUI* pCmdUI)
{
// TODO: Add your command update UI handler code here
// Make sure that object data is available
COleDataObject dataObject;
if (dataObject.AttachClipboard() && dataObject.IsDataAvailable(m_cfEmbedded))
{ pCmdUI->Enable(TRUE); }
else
{ pCmdUI->Enable(FALSE); }
}
Listing 17.
void CEx32bView::OnEditPastefrom()
{
// TODO: Add your command handler code here
CEx32bDoc* pDoc = GetDocument();
// Paste from an .STG file
CFileDialog dlg(TRUE, "stg", "*.stg");
if (dlg.DoModal() != IDOK)
{ return; }
// Open the storage and substorage
LPSTORAGE pStgRoot;
VERIFY(::StgOpenStorage(dlg.GetPathName().AllocSysString(), NULL,
STGM_READ|STGM_SHARE_EXCLUSIVE,
NULL, 0, &pStgRoot) == S_OK);
ASSERT(pStgRoot != NULL);
LPSTORAGE pStgSub;
VERIFY(pStgRoot->OpenStorage(CEx32bDoc::s_szSub, NULL,
STGM_READ|STGM_SHARE_EXCLUSIVE,
NULL, 0, &pStgSub) == S_OK);
ASSERT(pStgSub != NULL);
// Copy the object data from the user storage to the temporary storage
VERIFY(pStgSub->CopyTo(NULL, NULL, NULL,
pDoc->m_pTempStgSub) == S_OK);
// Finally, load the object -- pClientSite not necessary
LPOLECLIENTSITE pClientSite =
(LPOLECLIENTSITE) pDoc->GetInterface(&IID_IOleClientSite);
ASSERT(pClientSite != NULL);
pDoc->DeleteContents();
VERIFY(::OleLoad(pDoc->m_pTempStgSub, IID_IOleObject, pClientSite,
(void**) &pDoc->m_lpOleObj) == S_OK);
SetViewAdvise();
pStgSub->Release();
pStgRoot->Release();
GetSize();
pDoc->SetModifiedFlag();
pDoc->UpdateAllViews(NULL);
}
Listing 18.

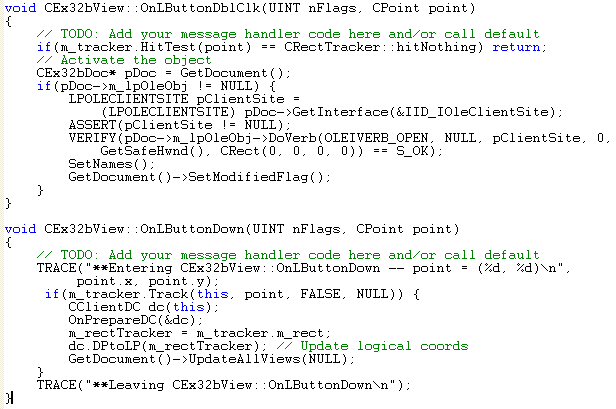

void CEx32bView::OnLButtonDblClk(UINT nFlags, CPoint point)
{
// TODO: Add your message handler code here and/or call default
if(m_tracker.HitTest(point) == CRectTracker::hitNothing) return;
// Activate the object
CEx32bDoc* pDoc = GetDocument();
if(pDoc->m_lpOleObj != NULL)
{
LPOLECLIENTSITE pClientSite =
(LPOLECLIENTSITE) pDoc->GetInterface(&IID_IOleClientSite);
ASSERT(pClientSite != NULL);
VERIFY(pDoc->m_lpOleObj->DoVerb(OLEIVERB_OPEN, NULL, pClientSite, 0,
GetSafeHwnd(), CRect(0, 0, 0, 0)) == S_OK);
SetNames();
GetDocument()->SetModifiedFlag();
}
}
void CEx32bView::OnLButtonDown(UINT nFlags, CPoint point)
{
// TODO: Add your message handler code here and/or call default
TRACE("**Entering CEx32bView::OnLButtonDown -- point = (%d, %d)\n",
point.x, point.y);
if(m_tracker.Track(this, point, FALSE, NULL))
{
CClientDC dc(this);
OnPrepareDC(&dc);
m_rectTracker = m_tracker.m_rect;
dc.DPtoLP(m_rectTracker); // Update logical coords
GetDocument()->UpdateAllViews(NULL);
}
TRACE("**Leaving CEx32bView::OnLButtonDown\n");
}
Listing 19.

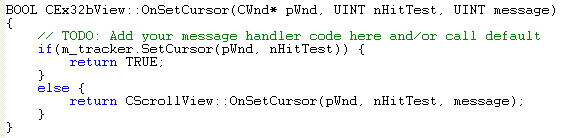

BOOL CEx32bView::OnSetCursor(CWnd* pWnd, UINT nHitTest, UINT message)
{
// TODO: Add your message handler code here and/or call default
if(m_tracker.SetCursor(pWnd, nHitTest))
{
return TRUE;
}
else
{
return CScrollView::OnSetCursor(pWnd, nHitTest, message);
}
}
Listing 20.
Complete other message handlers’ codes previously added.

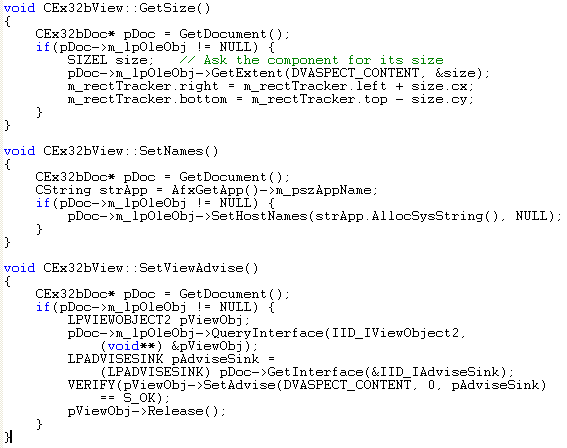

void CEx32bView::GetSize()
{
CEx32bDoc* pDoc = GetDocument();
if(pDoc->m_lpOleObj != NULL)
{
SIZEL size; // Ask the component for its size
pDoc->m_lpOleObj->GetExtent(DVASPECT_CONTENT, &size);
m_rectTracker.right = m_rectTracker.left + size.cx;
m_rectTracker.bottom = m_rectTracker.top - size.cy;
}
}
void CEx32bView::SetNames()
{
CEx32bDoc* pDoc = GetDocument();
CString strApp = AfxGetApp()->m_pszAppName;
if(pDoc->m_lpOleObj != NULL)
{ pDoc->m_lpOleObj->SetHostNames(strApp.AllocSysString(), NULL); }
}
void CEx32bView::SetViewAdvise()
{
CEx32bDoc* pDoc = GetDocument();
if(pDoc->m_lpOleObj != NULL)
{
LPVIEWOBJECT2 pViewObj;
pDoc->m_lpOleObj->QueryInterface(IID_IViewObject2,
(void**) &pViewObj);
LPADVISESINK pAdviseSink =
(LPADVISESINK) pDoc->GetInterface(&IID_IAdviseSink);
VERIFY(pViewObj->SetAdvise(DVASPECT_CONTENT, 0, pAdviseSink)
== S_OK);
pViewObj->Release();
}
}
Listing 21.
BOOL CEx32bView::MakeMetafilePict(COleDataSource *pSource)
{
CEx32bDoc* pDoc = GetDocument();
COleDataObject dataObject;
LPDATAOBJECT pDataObj; // OLE object's IDataObject interface
VERIFY(pDoc->m_lpOleObj->QueryInterface(IID_IDataObject,
(void**) &pDataObj) == S_OK);
dataObject.Attach(pDataObj);
FORMATETC fmtem;
SETFORMATETC(fmtem, CF_METAFILEPICT, DVASPECT_CONTENT, NULL,
TYMED_MFPICT, -1);
if (!dataObject.IsDataAvailable(CF_METAFILEPICT, &fmtem))
{
TRACE("CF_METAFILEPICT format is unavailable\n");
return FALSE;
}
// Just copy the metafile handle from the OLE object
// to the clipboard data object
STGMEDIUM stgmm;
VERIFY(dataObject.GetData(CF_METAFILEPICT, &stgmm, &fmtem));
pSource->CacheData(CF_METAFILEPICT, &stgmm, &fmtem);
return TRUE;
}
Listing 22.
COleDataSource* CEx32bView::SaveObject()
{
TRACE("Entering CEx32bView::SaveObject\n");
CEx32bDoc* pDoc = GetDocument();
if (pDoc->m_lpOleObj != NULL)
{
COleDataSource* pSource = new COleDataSource();
// CODE FOR OBJECT DATA
FORMATETC fmte;
SETFORMATETC(fmte, m_cfEmbedded, DVASPECT_CONTENT, NULL,
TYMED_ISTORAGE, -1);
STGMEDIUM stgm;
stgm.tymed = TYMED_ISTORAGE;
stgm.pstg = pDoc->m_pTempStgSub;
stgm.pUnkForRelease = NULL;
pDoc->m_pTempStgSub->AddRef(); // must do both!
pDoc->m_pTempStgRoot->AddRef();
pSource->CacheData(m_cfEmbedded, &stgm, &fmte);
// metafile needed too
MakeMetafilePict(pSource);
// CODE FOR OBJECT DESCRIPTION DATA
HGLOBAL hObjDesc = ::GlobalAlloc(GMEM_SHARE, sizeof(OBJECTDESCRIPTOR));
LPOBJECTDESCRIPTOR pObjDesc =
(LPOBJECTDESCRIPTOR) ::GlobalLock(hObjDesc);
pObjDesc->cbSize = sizeof(OBJECTDESCRIPTOR);
pObjDesc->clsid = CLSID_NULL;
pObjDesc->dwDrawAspect = 0;
pObjDesc->dwStatus = 0;
pObjDesc->dwFullUserTypeName = 0;
pObjDesc->dwSrcOfCopy = 0;
pObjDesc->sizel.cx = 0;
pObjDesc->sizel.cy = 0;
pObjDesc->pointl.x = 0;
pObjDesc->pointl.y = 0;
::GlobalUnlock(hObjDesc);
pSource->CacheGlobalData(m_cfObjDesc, hObjDesc);
return pSource;
}
return NULL;
}
Listing 23.
BOOL CEx32bView::DoPasteObject(COleDataObject *pDataObject)
{
TRACE("Entering CEx32bView::DoPasteObject\n");
// Update command UI should keep us out of here if not
// CF_EMBEDDEDOBJECT
if (!pDataObject->IsDataAvailable(m_cfEmbedded))
{
TRACE("CF_EMBEDDEDOBJECT format is unavailable\n");
return FALSE;
}
CEx32bDoc* pDoc = GetDocument();
// Now create the object from the IDataObject*.
// OleCreateFromData will use CF_EMBEDDEDOBJECT format if available.
LPOLECLIENTSITE pClientSite =
(LPOLECLIENTSITE) pDoc->GetInterface(&IID_IOleClientSite);
ASSERT(pClientSite != NULL);
VERIFY(::OleCreateFromData(pDataObject->m_lpDataObject,
IID_IOleObject,OLERENDER_DRAW, NULL, pClientSite,
pDoc->m_pTempStgSub, (void**) &pDoc->m_lpOleObj) == S_OK);
return TRUE;
}
Listing 24.

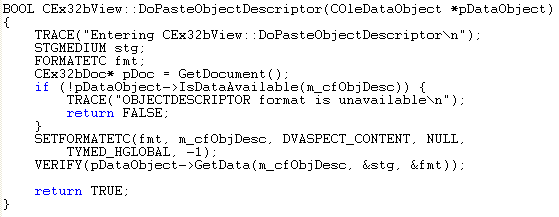

BOOL CEx32bView::DoPasteObjectDescriptor(COleDataObject *pDataObject)
{
TRACE("Entering CEx32bView::DoPasteObjectDescriptor\n");
STGMEDIUM stg;
FORMATETC fmt;
CEx32bDoc* pDoc = GetDocument();
if (!pDataObject->IsDataAvailable(m_cfObjDesc))
{
TRACE("OBJECTDESCRIPTOR format is unavailable\n");
return FALSE;
}
SETFORMATETC(fmt, m_cfObjDesc, DVASPECT_CONTENT, NULL,
TYMED_HGLOBAL, -1);
VERIFY(pDataObject->GetData(m_cfObjDesc, &stg, &fmt));
return TRUE;
}
Listing 25.
Add the following prototype in ex32bDoc.h.
void ITrace(REFIID iid, const char* str);
Listing 26.
Manually add the following interface OleClientSite and AdviseSink.
BEGIN_INTERFACE_PART(OleClientSite, IOleClientSite)
STDMETHOD(SaveObject)();
STDMETHOD(GetMoniker)(DWORD, DWORD, LPMONIKER*);
STDMETHOD(GetContainer)(LPOLECONTAINER*);
STDMETHOD(ShowObject)();
STDMETHOD(OnShowWindow)(BOOL);
STDMETHOD(RequestNewObjectLayout)();
END_INTERFACE_PART(OleClientSite)
BEGIN_INTERFACE_PART(AdviseSink, IAdviseSink)
STDMETHOD_(void,OnDataChange)(LPFORMATETC, LPSTGMEDIUM);
STDMETHOD_(void,OnViewChange)(DWORD, LONG);
STDMETHOD_(void,OnRename)(LPMONIKER);
STDMETHOD_(void,OnSave)();
STDMETHOD_(void,OnClose)();
END_INTERFACE_PART(AdviseSink)
DECLARE_INTERFACE_MAP()
Listing 27.
Add the following friend class (in order to access the private variables and member functions).
friend class CEx32bView;
private:
LPOLEOBJECT m_lpOleObj;
LPSTORAGE m_pTempStgRoot;
LPSTORAGE m_pTempStgSub;
BOOL m_bHatch;
