MODULE J1

WINDOWS OS SECURITY

::ACCESS CONTROL::

PART 11 - EXAMPLES







What are in this Module?

  1. Empty DACL program example.

  2. NULL DACL program example.

  3. Modifying existing DACLs of an Object program example.





























My Training Period: xx hours. This is continuation from Windows Access Control Programming 10. Before you begin, read some instruction here.





Before you begin, some notes for Windows XP



For the default setting of the Win XP installation, to view the Security tab of the Windows object you have to disable the "Use simple file sharing" in the folder options setting as shown in the following figures.



Launch the Windows Explorer Click the Tools menu Select the Folder Options…



An Empty DACL



By using the previous program example, in the following program example we try to demonstrate creating an empty DACL.



// Using the same program, but in this program we try to demonstrate creating an empty DACL

#define _WIN32_WINNT 0x0500

#include <windows.h>

#include <sddl.h>

#include <stdio.h>



// Prototype

BOOL CreateMyDACL(SECURITY_ATTRIBUTES *);



TCHAR DirName[20] = "C:\\MyDirectory";



int main()

{

     SECURITY_ATTRIBUTES  sa;

     // The SECURITY_ATTRIBUTE structure size

     sa.nLength = sizeof(SECURITY_ATTRIBUTES);

     // The return handle not inherited

     sa.bInheritHandle = FALSE;

     // Call CreateMyDACL() function to set the DACL. The DACL

     // is set in the SECURITY_ATTRIBUTES

     // lpSecurityDescriptor member.

     if(!CreateMyDACL(&sa))

     {

         //Error encountered; generate message and just exit.

         printf("Failed CreateMyDACL()\n");

         exit(1);

     }

     else

         printf("CreateMyDACL() is OK\n");

     // Use the updated SECURITY_ATTRIBUTES to specify

     // security attributes for securable objects.

     // This example uses security attributes during

     // creation of a new directory.

     if(CreateDirectory(DirName, &sa) == 0)

     {

         // If error encountered; generate message and exit.

         printf("CreateDirectory() for %s failed lol!\n", DirName);

         exit(1);

     }

     else

         printf("CreateDirectory() for %s is OK.\n", DirName);

     // Release the memory allocated for the SECURITY_DESCRIPTOR.

     if(LocalFree(sa.lpSecurityDescriptor) != NULL)

     {

         // Error encountered; generate message and exit.

         printf("LocalFree() failed.\n");

         exit(1);

     }

     else

        printf("LocalFree() is OK.\n");

return 0;

}

// Create a security descriptor that contains the DACL you want.

BOOL CreateMyDACL(SECURITY_ATTRIBUTES * pSA)

{

 TCHAR * szSD = TEXT("D:");    // An empty DACL



 if(pSA == NULL)

      return FALSE;

 PULONG nSize = 0;

 // Do some verification

 printf("The ACE strings: %s \n", szSD);

 printf("The converted string is at: %p \n", &(pSA->lpSecurityDescriptor));

 // Convert the string to the security descriptor binary and return

 return ConvertStringSecurityDescriptorToSecurityDescriptor(

        szSD,                                        // The ACE strings

        SDDL_REVISION_1,              // Standard revision level

        &(pSA->lpSecurityDescriptor), // Pointer to the converted security descriptor

        nSize);                                          // The size in byte the converted security descriptor

}



A sample output:

The ACE strings: D:

The converted string is at: 0012FED0

CreateMyDACL() is OK

CreateDirectory() for C:\MyDirectory is OK.

LocalFree() is OK.

Press any key to continue

In this case, when user Mike (a member of an Administrators group) tries to open (or delete) the MyDirectory directory, the following message displayed.



Access is denied lol



Figure 8.



When we verify through the MyDirectory’s property page, there is no ACE at all.  Do not create an empty DACL.  By the way, Administrator still has the permission to modify the permission or he/she can take the ownership of this directory object.



Windows directory property page



Figure 9.



NULL DACL



In the following program example we will demonstrate how to create a NULL DACL.



// Using the same program, but in this program we try to demonstrate creating a NULL DACL

#define _WIN32_WINNT 0x0500

#include <windows.h>

#include <sddl.h>

#include <stdio.h>



// Prototype

BOOL CreateMyDACL(SECURITY_ATTRIBUTES *);

TCHAR DirName[20] = "C:\\MyDirectory";



int main()

{

     SECURITY_ATTRIBUTES sa;

     // The SECURITY_ATTRIBUTE structure size

     sa.nLength = sizeof(SECURITY_ATTRIBUTES);

     // The return handle not inherited

     sa.bInheritHandle = FALSE;

     // Call CreateMyDACL() function to set the DACL. The DACL

     // is set in the SECURITY_ATTRIBUTES

     // lpSecurityDescriptor member.

     if(!CreateMyDACL(&sa))

     {

         //Error encountered; generate message and just exit.

         printf("Failed CreateMyDACL()\n");

         exit(1);

     }

     else

        printf("CreateMyDACL() is OK\n");

     // Here we just set a NULL DACL lol!

     if(CreateDirectory(DirName, NULL) == 0)

     {

         // Error encountered; generate message and exit.

         printf("CreateDirectory() for %s failed lol!\n", DirName);

         exit(1);

     }

     else

         printf("CreateDirectory() for %s is OK.\n", DirName);

          // Release the memory allocated for the SECURITY_DESCRIPTOR.

     if(LocalFree(sa.lpSecurityDescriptor) != NULL)

     {

         // Error encountered; generate message and exit.

         printf("LocalFree() failed.\n");

         exit(1);

     }

     else

        printf("LocalFree() is OK.\n");

return 0;

}

// Create a security descriptor that contains the DACL you want.

BOOL CreateMyDACL(SECURITY_ATTRIBUTES * pSA)

{

 TCHAR * szSD = TEXT("D:")    // Discretionary ACL

 TEXT("(D;OICI;GA;;;BA)")     // Deny all for built-in Administrators group :o)

 TEXT("(D;OICI;GRGWGX;;;AU)") // Allow read/write/execute to Authenticated users

 TEXT("(A;OICI;GA;;;AN)")     // Allow all to anonymous logon

 TEXT("(A;OICI;GA;;;BG)");    // Allow all to built-in guests



 if(pSA == NULL)

      return FALSE;

 PULONG nSize = 0;

 // Do some verification

 printf("The ACE strings: %s \n", szSD);

 printf("The converted string is at: %p \n", &(pSA->lpSecurityDescriptor));

 // Convert the string to the security descriptor binary and return

 return ConvertStringSecurityDescriptorToSecurityDescriptor(

        szSD,                                        // The ACE strings

        SDDL_REVISION_1,              // Standard revision level

        &(pSA->lpSecurityDescriptor), // Pointer to the converted security descriptor

        nSize);                                          // The size in byte the converted security descriptor

}



A sample output:

The ACE strings: D:(D;OICI;GA;;;BA)(D;OICI;GRGWGX;;;AU)(A;OICI;GA;;;AN)(A;OICI;GA;;;BG)

The converted string is at: 0012FED0

CreateMyDACL() is OK

CreateDirectory() for C:\MyDirectory is OK.

LocalFree() is OK.

Press any key to continue

When we verify through the MyDirectory’s property page, Everyone has a full control permission!  It is very dangerous.



Danger of the NULL DACL



Figure 10.



Modifying existing DACLs of an Object

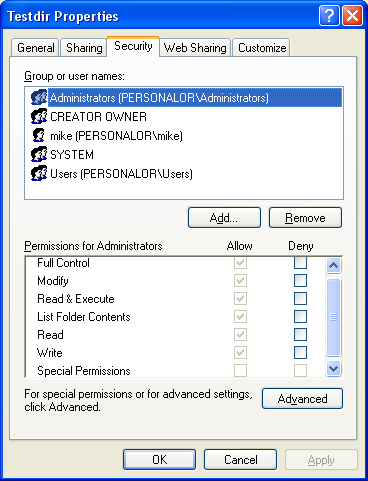

The following example adds an ACE to the DACL of an object.  The AccessMode parameter, a member of the EXPLICIT_ACCESS structure determines the type of new ACE and how the new ACE is combined with any existing ACEs for the specified trustee. You can use the GRANT_ACCESS, SET_ACCESS, DENY_ACCESS, or REVOKE_ACCESS flags in the AccessMode parameter.  Similar code can be used to work with a SACL.  Specify SACL_SECURITY_INFORMATION in the GetNamedSecurityInfo() and SetNamedSecurityInfo() functions to get and set the SACL for the object.  Use the SET_AUDIT_SUCCESS, SET_AUDIT_FAILURE, and REVOKE_ACCESS flags in the AccessMode parameter.  This code example can be used to add an object-specific ACE to the DACL of a directory service object.  To specify the GUIDs in an object-specific ACE, set the TrusteeForm parameter to TRUSTEE_IS_OBJECTS_AND_NAME or TRUSTEE_IS_OBJECTS_AND_SID and set the pszTrustee parameter to be a pointer to an OBJECTS_AND_NAME or OBJECTS_AND_SID structure.  This example uses the GetNamedSecurityInfo() function to get the existing DACL.  Then it fills an EXPLICIT_ACCESS structure with information about an ACE and uses the SetEntriesInAcl() function to merge the new ACE with any existing ACEs in the DACL.  Finally, the example calls the SetNamedSecurityInfo() function to attach the new DACL to the security descriptor of the object.  The following figures are the Testdir directory property pages before the program been run.



Windows directory property page



Figure 11.



Permission setting of the directory property page



Figure 12.



// Modifying DACL of an object. In ACL there are ACEs...

// So add or remove ACEs lol. Here we are going to add deny standard right access for Administrators group

// This Win XP machine is logged in by user named Mike who is a member of Administrators group...

#include <windows.h>

#include <accctrl.h>

#include <aclapi.h>

#include <stdio.h>



// Clean up the buffer function

void Cleanup(PSECURITY_DESCRIPTOR pSD, PACL pNewDACL)

{

if(pSD != NULL)

        LocalFree((HLOCAL) pSD);

else

        printf("pSD cleaning is OK\n");

if(pNewDACL != NULL)

        LocalFree((HLOCAL) pNewDACL);

else

        printf("pNewDACL cleaning is OK\n");

}



int main()

{

// name of object, here we will add ACE for a directory

// the directory is already created...

LPTSTR pszObjName = "C:\\Testdir";

// type of object, file or directory.  Here we test on directory

SE_OBJECT_TYPE ObjectType = SE_FILE_OBJECT;

// access mask for new ACE equal to 0x001F0000 flags (bit 0 till 15)

DWORD dwAccessRights = STANDARD_RIGHTS_ALL;

// type of ACE, Access denied ACE

ACCESS_MODE AccessMode = DENY_ACCESS;

// inheritance flags for new the ACE. The OBJECT_INHERIT_ACE and CONTAINER_INHERIT_ACE flags are

// not propagated to an inherited ACE.

DWORD dwInheritance = NO_PROPAGATE_INHERIT_ACE;

// format of trustee structure, the trustee is name

TRUSTEE_FORM TrusteeForm = TRUSTEE_IS_NAME;

// trustee for new ACE.  This just for fun...When you run once, only one

// element will take effect.  By changing the first array element we

// can change to other trustee and re run the program....

// Other than Mike, they are all well known trustees

char pszTrustee[4][15] = {"Administrators", "System", "Users", "Mike"};



// Result

DWORD dwRes = 0;

// Existing and new DACL pointers...

PACL pOldDACL = NULL, pNewDACL = NULL;

// Security descriptor

PSECURITY_DESCRIPTOR pSD = NULL;

// EXPLICIT_ACCESS structure.  For more than one entries, declare an array of the EXPLICIT_ACCESS structure

EXPLICIT_ACCESS ea;

// Verify the object name validity

if(pszObjName == NULL)

    return ERROR_INVALID_PARAMETER;

else

    printf("The object name is OK\n");



// Some verification...just for fun...Verify that our new trustee strings is OK

for(int i = 0; i <= 3; i++)

    printf("Test pointer #%d: %s\n", i, pszTrustee[i]);

// Get a pointer to the existing DACL.

dwRes = GetNamedSecurityInfo(pszObjName, ObjectType, DACL_SECURITY_INFORMATION, NULL, NULL, &pOldDACL, NULL, &pSD);

// Verify

if(dwRes != ERROR_SUCCESS)

{

    printf("GetNamedSecurityInfo() error %u\n", dwRes);

    Cleanup(pSD, pNewDACL);

}

else

     printf("GetNamedSecurityInfo() is OK\n");



// Initialize an EXPLICIT_ACCESS structure for the new ACE.

// For more entries, declare an array of the EXPLICIT_ACCESS structure

ZeroMemory(&ea, sizeof(EXPLICIT_ACCESS));

ea.grfAccessPermissions = dwAccessRights;

ea.grfAccessMode = AccessMode;

ea.grfInheritance= dwInheritance;

ea.Trustee.TrusteeForm = TrusteeForm;

// Test for Administrators group, a new trustee for the ACE

// For other trustees, you can try changing the array index to 1, 2 and 3 and rerun, see the effect

ea.Trustee.ptstrName = (LPTSTR)(pszTrustee[0]);

// Create a new ACL that merges the new ACE into the existing DACL.

dwRes = SetEntriesInAcl(1, &ea, pOldDACL, &pNewDACL);

//  Verify

if(dwRes != ERROR_SUCCESS)

{

    printf("SetEntriesInAcl() Error %u\n", dwRes);

    Cleanup(pSD, pNewDACL);

}

else

    printf("SetEntriesInAcl() is OK\n");

// Attach the new ACL as the object's DACL.

dwRes = SetNamedSecurityInfo(pszObjName, ObjectType, DACL_SECURITY_INFORMATION, NULL, NULL, pNewDACL, NULL);



if(dwRes != ERROR_SUCCESS)

{

    printf("SetNamedSecurityInfo() Error %u\n", dwRes);

    Cleanup(pSD, pNewDACL);

 }

printf("SetNamedSecurityInfo() is OK\n");



return 0;

}



A sample output:

The object name is OK

Test pointer #0: Administrators

Test pointer #1: System

Test pointer #2: Users

Test pointer #3: Mike

GetNamedSecurityInfo() is OK

SetEntriesInAcl() is OK

SetNamedSecurityInfo() is OK

Press any key to continue



Then verify through the Testdir directory property pages again.



Windows directory property page



Figure 13.



Under the Permission for Administrators group, the Special Permissions is ticked for the Deny permission.  Keep in mind that Deny overwrites the Allow permission.  The following figure also confirmed that our new ACE for the Deny is not inherited.



Advanced permission settings of the directory property page



Figure 14.



Remember that, DENY overwrites ALLOW permission.  For this case because Mike is a member of the Administrators group, then he cannot delete or open the Testdir directory.  We have to log off and login again as other Administrators group user or create another user that is a member of Administrators or take the object’s ownership or just edit the permission entries.  Well, it funny isn’t it? When we try to delete the folder, the following message was displayed.



Error message when deleting directory



Figure 15.



It is same when we want to open the folder, it is not accessible.  So, what ever it is, please don’t mess up your machine.  The following program example tries to modify the SACL.  Figures shown are the Testdir3 property pages before the program is run.



Directory property page



Figure 16.



Nothing in the Auditing directory property page



Figure 17.



// Modifying ACL of an object.  Here we are going to add Allow standard right access and SACL.

// This Win XP machine is logged in by user named Mike who is a member of Administrators group...

// To access a SACL using the GetNamedSecurityInfo() or SetNamedSecurityInfo() functions, we have to enable

// the SE_SECURITY_NAME privilege.



#include <windows.h>

#include <accctrl.h>

#include <aclapi.h>

#include <stdio.h>



// Clean up routine

void Cleanup(PSECURITY_DESCRIPTOR pSS, PACL pNewSACL)

{

if(pSS != NULL)

        LocalFree((HLOCAL) pSS);

else

        printf("pSS cleaning is OK\n");

if(pNewSACL != NULL)

        LocalFree((HLOCAL) pNewSACL);

else

        printf("pNewSACL cleaning is OK\n");

}



int main()

{

// name of object, here we will add an ACE for a directory

LPTSTR pszObjName = "C:\\Testdir2\\Testdir3";

// type of object, file or directory, a directory

SE_OBJECT_TYPE ObjectType = SE_FILE_OBJECT;

// access mask for new ACE equal to 0X11000000 - GENERIC_ALL and ACCESS_SYSTEM_SECURITY

DWORD dwAccessRights = 0X11000000;

// type of ACE, set audit for success

ACCESS_MODE AccessMode = SET_AUDIT_SUCCESS;

// inheritance flags for new ACE. The OBJECT_INHERIT_ACE and CONTAINER_INHERIT_ACE flags are

// not propagated to an inherited ACE.

DWORD dwInheritance = NO_PROPAGATE_INHERIT_ACE;

// format of trustee structure, the trustee is name

TRUSTEE_FORM TrusteeForm = TRUSTEE_IS_NAME;

// the new trustee for the ACE is set to testuser, a normal user

LPTSTR pszTrustee = "testuser";

// Result

DWORD dwRes = 0;

// Existing and new SACL pointers...

PACL pOldSACL = NULL, pNewSACL = NULL;

// Security descriptor

PSECURITY_DESCRIPTOR pSS = NULL;

// EXPLICIT_ACCESS structure

EXPLICIT_ACCESS ea;



// Verify the object name validity

if(pszObjName == NULL)

    return ERROR_INVALID_PARAMETER;

else

    printf("The object name is OK\n");

//******************************************************

// Get the privilege first!!!

// Privilege routine here

//******************************************************

// Get a pointer to the existing SACL.

dwRes = GetNamedSecurityInfo(pszObjName, ObjectType, SACL_SECURITY_INFORMATION, NULL, NULL, NULL, &pOldSACL, &pSS);



// Verify

if(dwRes != ERROR_SUCCESS)

{

    printf("GetNamedSecurityInfo() error %u\n", dwRes);

    Cleanup(pSS, pNewSACL);

}

else

    printf("GetNamedSecurityInfo() is OK\n");

// Initialize an EXPLICIT_ACCESS structure for the new ACE. If more entries needed, you can create an array

// of the ea variable of the EXPLICIT_ACCESS

ZeroMemory(&ea, sizeof(EXPLICIT_ACCESS));

ea.grfAccessPermissions = dwAccessRights;

ea.grfAccessMode = AccessMode;

ea.grfInheritance= dwInheritance;

ea.Trustee.TrusteeForm = TrusteeForm;

// Other structure elements...

// ea.Trustee.TrusteeType = TRUSTEE_IS_GROUP;

// ea.Trustee.TrusteeType = TRUSTEE_IS_USER;

// The trustee is testuser

ea.Trustee.ptstrName = pszTrustee;

// Create a new ACL that merges the new ACE into the existing ACL.

dwRes = SetEntriesInAcl(1, &ea, pOldSACL, &pNewSACL);

if(dwRes != ERROR_SUCCESS)

{

    printf("SetEntriesInAcl() error %u\n", dwRes);

    Cleanup(pSS, pNewSACL);

}

else

    printf("SetEntriesInAcl() is OK\n");

// Attach the new ACL as the object's SACL.

dwRes = SetNamedSecurityInfo(pszObjName, ObjectType, SACL_SECURITY_INFORMATION, NULL, NULL, NULL, pNewSACL);



if(dwRes != ERROR_SUCCESS)

{

    printf("SetNamedSecurityInfo() error %u\n", dwRes);

    Cleanup(pSS, pNewSACL);

 }

else

    printf("SetNamedSecurityInfo() is OK\n");

return 0;

}



A sample output:

The object name is OK

GetNamedSecurityInfo() error 1314

pSS cleaning is OK

pNewSACL cleaning is OK

SetEntriesInAcl() is OK

SetNamedSecurityInfo() error 1314

pSS cleaning is OK

Press any key to continue

1314 - This is an ERROR_PRIVILEGE_NOT_HELD, a required privilege is not held by the client.



From the program output and the Advanced Security Setting for Testdir3 directory property pages as shown below, we failed to add the SACL in the ACE.  We need to enable the related and required privilege to set the SACL in the ACE as demonstrated in the previous "Creating the DACL" program example and is left for your assignment.



Still no entry in Auditing directory property page



Figure 18.



-------------------------------Windows Access Control program examples, Part III---------------------------



























Further reading and digging:



  1. Windows data type information is in Windows data types used in Win32 programming.

  2. Check the best selling C, C++ and Windows books at Amazon.com.

  3. Microsoft Visual C++, online MSDN.

  4. MSDN library.

  5. For Multibytes, Unicode characters and Localization please refer to Locale, wide characters & Unicode (Story) and Windows users & groups programming tutorials (Implementation).

  6. Structure, enum, union and typedef story can be found C/C++ struct, enum, union & typedef.

  7. Notation used in MSDN is Hungarian Notation instead of CamelCase and is discussed Windows programming notations.













|< Windows Access Control Programming 10 | Main | Windows Access Control Programming 12 >| Site Index | Download |
