MODULE J

WINDOWS OS SECURITY

::ACCESS CONTROL::

PART 10 - EXAMPLES











What are in this Module?

  1. Creating a DACL from a scratch program example

  2. Creating DACL and SACL program example: Privilege









My Training Period: xx hours. This is continuation from Windows Access Control Programming 9. Before you begin, read some instruction here.





Before you begin, some notes for Windows XP:



For the default setting of the Win XP installation, to view the Security tab of the Windows object you have to disable the "Use simple file sharing" in the folder options setting as shown in the following figures.



Launch the Windows Explorer Click the Tools menu Select the Folder Options…



Viewing the Windows Xp security tab



Figure 1.

Then, click the View tab and uncheck the "Use simple file sharing (Recommended)" check box.  Click the OK button.



Enabling Windows Xp security tab



Figure 2.































Creating a DACL from a scratch



The following example shows how to properly construct a DACL during the Windows’s object creation.  The example contains a function, CreateMyDACL(), that uses the security descriptor definition language (sddl) to define the granted and denied access control in a DACL and then set the access control on the newly created directory.  To provide different access for your application's objects, modify the CreateMyDACL() function as needed.   In the example:

  1. Deny all access to built-in Administrators group.
  2. Allow read/write/execute access to authenticated users.
  3. Allow full control to anonymous.
  4. Allow full control to built-in guest.

To successfully compile SDDL functions such as ConvertStringSecurityDescriptorToSecurityDescriptor(), you must define the _WIN32_WINNT constant as 0x0500 or greater (please refer to _WIN32_WINNT constant for more detail).



#define _WIN32_WINNT 0x0500

#include <windows.h>

#include <sddl.h>

#include <stdio.h>



// Prototype

BOOL CreateMyDACL(SECURITY_ATTRIBUTES *);



TCHAR DirName[20] = "C:\\MyDirectory";



int main()

{

     SECURITY_ATTRIBUTES  sa;



     // The SECURITY_ATTRIBUTE structure size

     sa.nLength = sizeof(SECURITY_ATTRIBUTES);

     // The return handle not inherited

     sa.bInheritHandle = FALSE;

     // Call CreateMyDACL() function to set the DACL. The DACL is set in the SECURITY_ATTRIBUTES lpSecurityDescriptor member.

     if(!CreateMyDACL(&sa))

     {

         //Error encountered; generate message and just exit.

         printf("Failed CreateMyDACL()\n");

         exit(1);

     }

     else

         printf("CreateMyDACL() is OK\n");



     // Use the updated SECURITY_ATTRIBUTES to specify security attributes for securable objects.

     // This example uses security attributes during creation of a new directory.

     if(CreateDirectory(DirName, &sa) == 0)

     {

         // Error encountered; generate message and exit.

         printf("CreateDirectory() failed lol!\n");

         exit(1);

     }

     else

        printf("CreateDirectory() is OK.\n");

     // Release the memory allocated for the SECURITY_DESCRIPTOR.

     if(LocalFree(sa.lpSecurityDescriptor) != NULL)

     {

         // Error encountered; generate message and exit.

         printf("LocalFree() failed.\n");

         exit(1);

     }

     else

        printf("LocalFree() is OK.\n");

return 0;

}



// CreateMyDACL.

//    Create a security descriptor that contains the DACL you want.

//    This function uses SDDL to make Deny and Allow ACEs.

//

// Parameter:

//    SECURITY_ATTRIBUTES * pSA

//    Pointer to a SECURITY_ATTRIBUTES structure. It is the caller's

//    responsibility to properly initialize the structure and to free the structure's lpSecurityDescriptor member when the caller has

//    finished using it. To free the structure's lpSecurityDescriptor member, call the LocalFree function.

//

// Return value:

//    FALSE if the address to the structure is NULL. Otherwise, this function returns the value from the

//    ConvertStringSecurityDescriptorToSecurityDescriptor function.

BOOL CreateMyDACL(SECURITY_ATTRIBUTES * pSA)

{

 // Define the SDDL for the DACL. This example sets the following access:

 // Deny all for built-in Administrators group Allow read/write/execute to Authenticated users

 // Allow all to anonymous logon Allow all to built-in guests. This is not a proper setting, how come you deny the Administrator lol!!!

 // But this example just for fun...

 TCHAR * szSD = TEXT("D:")    // Discretionary ACL

 TEXT("(D;OICI;GA;;;BA)")     // Deny all for built-in Administrators group :o)

 TEXT("(D;OICI;GRGWGX;;;AU)") // Allow read/write/execute to Authenticated users

 TEXT("(A;OICI;GA;;;AN)")     // Allow all to anonymous logon

 TEXT("(A;OICI;GA;;;BG)");    // Allow all to built-in guests



 if(pSA == NULL)

      return FALSE;



 PULONG nSize = 0;

 // Do some verification

 printf("The ACE strings: %s \n", szSD);

 printf("The converted string is at: %p \n", &(pSA->lpSecurityDescriptor));



 // Convert the string to the security descriptor binary and return

 return ConvertStringSecurityDescriptorToSecurityDescriptor(

        szSD,                         // The ACE strings

        SDDL_REVISION_1,              // Standard revision level

        &(pSA->lpSecurityDescriptor), // Pointer to the converted security descriptor

        nSize);                // The size in byte the converted security descriptor

}



A sample output:

The ACE strings: D:(D;OICI;GA;;;BA)(D;OICI;GRGWGX;;;AU)(A;OICI;GA;;;AN)(A;OICI;GA;;;BG)

The converted string is at: 0012FED0

CreateMyDACL() is OK

CreateDirectory() is OK

LocalFree() is OK

Press any key to continue

Verify through the MyDirectory property pages.



Windows folder property page



Figure 3.



Try deleting the MyDirectory directory.  Because the DENY take precedence and the ACEs is based on the “First found first served and forget the rest”, you cannot delete the directory in this case.  However, in this case the computer used to run this program is logged by user Mike, who is a member of the Administrators group.  So he still has permission to modify the Allow, Deny Access permission.  Tick the Allow tick box under the Full Control of Permissions for Administrators to enable the MyDirectory deletion.  It looks funny isn’t it?  You can’t delete but you can change the permission so that you can delete!  Then click the Advanced button.  The following Advanced Security Settings is shown.  It shows the permission entries in more detail.



Advanced security setting for Windows directory



Figure 4.



Creating DACL and SACL: Privilege



The following program example try to create an ACL that contains both the DACL and SACL  For the SACL we need to enable the SeSecurityPrivilege privilege by using the AdjustTokenPrivileges().



//Creating an ACL-DACL & SACL, need the required privilege for SACL

//The following #define must be the 1st statement

#define _WIN32_WINNT 0x0500

#include <windows.h>

#include <sddl.h>

#include <stdio.h>



//******************* Enabling the privilege *******************

BOOL SetPrivilege(

    HANDLE hToken,          // access token handle

    LPCTSTR lpszPrivilege,  // name of privilege to enable/disable

    BOOL bEnablePrivilege   // to enable (or disable privilege)

    )

{

TOKEN_PRIVILEGES tp;

LUID luid;



if(!LookupPrivilegeValue(

        NULL,            // lookup privilege on local system

        lpszPrivilege,   // privilege to lookup

        &luid))          // receives LUID of privilege

{

    printf("LookupPrivilegeValue() error: %u\n", GetLastError());

    return FALSE;

}

else

    printf("LookupPrivilegeValue() is OK\n");

tp.PrivilegeCount = 1;

tp.Privileges[0].Luid = luid;



// Don't forget to disable the privilege after you enable them,

if(bEnablePrivilege)

{

       tp.Privileges[0].Attributes = SE_PRIVILEGE_ENABLED;

       // Just a verification here...

       printf("tp.Privileges[0].Attributes = SE_PRIVILEGE_ENABLED\n");

}

else

{

       tp.Privileges[0].Attributes = 0;

       printf("tp.Privileges[0].Attributes = 0\n");

}



// Enable the privilege (or disable all privileges).

if(!AdjustTokenPrivileges(

       hToken,

       FALSE, // If TRUE, function disables all privileges, if FALSE the function modifies privileges based on the tp

       &tp,

       sizeof(TOKEN_PRIVILEGES),

       (PTOKEN_PRIVILEGES) NULL,

       (PDWORD) NULL))

{

      printf("AdjustTokenPrivileges() error: %u\n", GetLastError());

      return FALSE;

}

else

      printf("AdjustTokenPrivileges() is OK, last error if any: %u\n", GetLastError());

return TRUE;

}

//********************** Create the ACL *****************

// CreateMyACL() routine.

// The return value is FALSE if the address to the structure is NULL.

// Otherwise, this function returns the value from the

// ConvertStringSecurityDescriptorToSecurityDescriptor function.

BOOL CreateMyACL(SECURITY_ATTRIBUTES * pSA)

{

    // Define the SDDL for the DACL & SACL.

    TCHAR * szSD = TEXT("D:")                 // DACL

    TEXT("(D;OICI;GRLOFR;;;AN)")           // Deny Anonymous some rights

    TEXT("(A;;RPWPCCDCLCRCWOWDSDSW;;;SY)") // Allow System some rights

    TEXT("(A;OICI;GACCFA;;;LA)")           // Allow Built-in Administrator some rights

    TEXT("(A;OICI;GACCFA;;;S-1-5-11)")     // Allow Authenticated user some rights

    TEXT("S:")                 // SACL

    TEXT("(OU;SAFA;RPWPCCDCLCRCWOWDSDSW;;;S-1-5-18)") // Object audit success/fail, Local systems, using a SID string

    TEXT("(OU;SAFA;GACCFA;;;AU)")  // Object audit success/fail, Authenticated users

    TEXT("(OU;SAFA;GAWPFW;;;LA)"); // Object audit success/fail, Built-in Administrator

     // Verify

     if(pSA == NULL)

        return FALSE;

    // Do some verification

printf("The ACE strings: %s \n", szSD);

// Convert to security descriptor binary and return

  return ConvertStringSecurityDescriptorToSecurityDescriptor(

      szSD,                                        // The ACE strings

      SDDL_REVISION_1,             // Standard revision level

      &(pSA->lpSecurityDescriptor), // Pointer to the converted security descriptor

      NULL);                                         // The size in byte the converted security descriptor

}



//******************* main *******************

int main()

{

    TCHAR DirName[30] = "H:\\MyTestDir";

    SECURITY_ATTRIBUTES  sa;



//******************* Enable the privilege first *******************

LPCTSTR lpszPrivilege = "SeSecurityPrivilege";

// Change this BOOL value to set/unset the SE_PRIVILEGE_ENABLED attribute

BOOL bEnablePrivilege = TRUE;

// Handle to the running process that is this (running) program

HANDLE hToken;



//*************** Get the handle to the process ****************

// Open a handle to the access token for the calling process. That is this running program

if(!OpenProcessToken(GetCurrentProcess(), TOKEN_ADJUST_PRIVILEGES, &hToken))

{

    printf("OpenProcessToken() error %u\n", GetLastError());

    return FALSE;

}

else

printf("OpenProcessToken() is OK\n");

//********************* Enabling (Disabling) privilege ***************************

// Call the user defined SetPrivilege() function to enable privilege

BOOL test = SetPrivilege(hToken, lpszPrivilege, bEnablePrivilege);

// Verify

printf("The SetPrivilage() return value: %d\n\n", test);



//*********************** End enabling privilege *********************

     // The SECURITY_ATTRIBUTE structure size

     sa.nLength = sizeof(SECURITY_ATTRIBUTES);

     // The return handle not inherited

     sa.bInheritHandle = FALSE;

     // Call CreateMyACL() function to set the DACL and SACL, is set in the SECURITY_ATTRIBUTES lpSecurityDescriptor member.

     if(!CreateMyACL(&sa))

     {

         // Error encountered; generate message and just exit.

         printf("CreateMyACL() is not OK, error %u.\n", GetLastError());

         exit(1);

     }

     else

       printf("CreateMyACL() is OK.\n");

     // Use the updated SECURITY_ATTRIBUTES to specify security attributes for securable objects.

     // This example uses security attributes during creation of a new directory.

     if(CreateDirectory(DirName, &sa) == 0)

     {

         // Error encountered; generate message and just exit.

         printf("CreateDirectory() is not OK lol!\n");

         exit(1);

     }

     else

         printf("CreateDirectory() is OK.\n\n");

     //***************** Disable the privilege ********************

     bEnablePrivilege = FALSE;

     SetPrivilege(hToken, lpszPrivilege, bEnablePrivilege);

     // Verify

     printf("The SetPrivilage() return value: %d\n\n", test);

     //****************** Clean up ********************************

     // Release the memory allocated for the SECURITY_DESCRIPTOR.

     // This means release back the used memory to the system

     if(LocalFree(sa.lpSecurityDescriptor) != NULL)

     {

         // Error encountered; generate message and just exit.

         printf("LocalFree() is not OK.\n");

         exit(1);

     }

     else

        printf("LocalFree() is OK.\n");

    return 0;

}



A sample output:

OpenProcessToken() is OK

LookupPrivilegeValue() is OK

tp.Privileges[0].Attributes = SE_PRIVILEGE_ENABLED

AdjustTokenPrivileges() is OK, last error if any: 0

The SetPrivilage() return value: 1



The ACE strings: D:(D;OICI;GRLOFR;;;AN)(A;;RPWPCCDCLCRCWOWDSDSW;;;SY)(A;OICI;GACCFA;;;LA)(A;OICI;GACCFA;;

;S-1-5-11)S:(OU;SAFA;RPWPCCDCLCRCWOWDSDSW;;;S-1-5-18)(OU;SAFA;GACCFA;;;AU)(OU;SAFA;GAWPFW;;;LA)

CreateMyACL() is OK.

CreateDirectory() is OK.

LookupPrivilegeValue() is OK

tp.Privileges[0].Attributes = 0

AdjustTokenPrivileges() is OK, last error if any: 0

The SetPrivilage() return value: 1



LocalFree() is OK.

Press any key to continue

Then, let verify through the MyTestDir property pages.



Directory property page



Figure 5.



Advanced setting of property page



Figure 6.

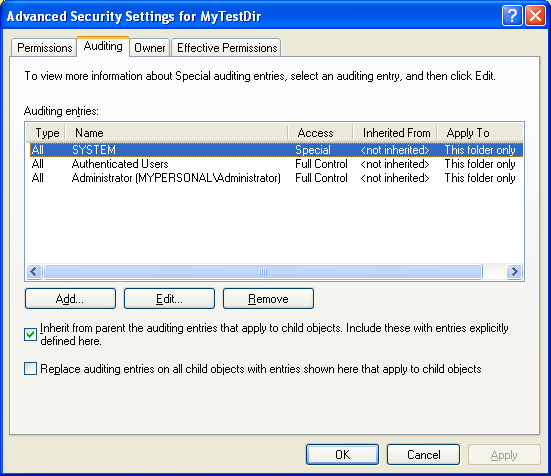

Auditing page of the directory property page



Figure 7.

























Further reading and digging:



  1. Structure, enum, union and typedef story can be found C/C++ struct, enum, union & typedef.

  2. Notation used in MSDN is Hungarian Notation instead of CamelCase and is discussed Windows programming notations.

  3. Check the best selling C, C++ and Windows books at Amazon.com.

  4. Microsoft Visual C++, online MSDN.

  5. MSDN library.

  6. For Multibytes, Unicode characters and Localization please refer to Locale, wide characters & Unicode (Story) and Windows users & groups programming tutorials (Implementation).

  7. Windows data type information is in Windows data types used in Win32 programming.















|< Windows Access Control Programming 9 | Main | Windows Access Control Programming 11 >| Site Index | Download |




C & C++ Programming Tutorial | C Programming Practice
